Fermax 1 Button VDS Colour Memovision Cityline Video Panel

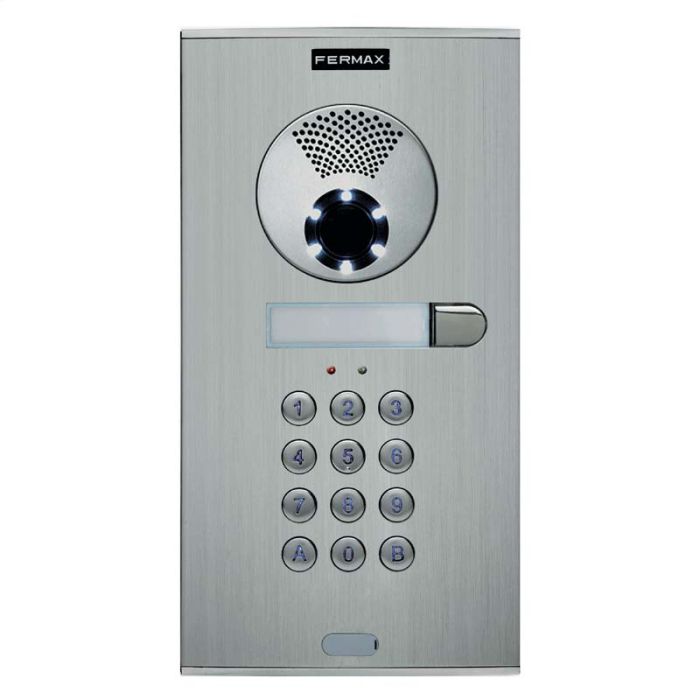

Fermax 7342 1 Button VDS Colour Memovision Cityline Video Panel

Installed in the accesses to the building, they enable communication with homes, door opening, guard unit call , etc.

Incorporates COLOUR camera with built-in lighting and pan&tilt regulation system to adjust the camera lens.

This new panel model is more robust, more luxurious and higher design and functional quality. The new design, in its video entry version, includes audio and video functions in the same module.

Aluminium colour, injected zamak chrome finish Call buttons, in line with the curved panel profile. Sealed for outdoors.

Equipped with special gold plated contacts for lasting durability. Pressing the call button is confirmed by an acoustic signal from the amplifier.

Pushbuttons include a polycarbonate card slot (front access) to insert a label with the home ownerÕs name and door number. Built in lighting lets you see the card slots, even in pitch dark.

VDS system: Simplified installation audio and video door entry system that does not use house call wires. The call is made by transmission of a digital call code generated by the VDS amplifier.

The system capacity and distance will depend on the installation wiring. VDS amplifier comes with voice synthesizer as standard issue. When the door release is activated a message is heard: Door open, please close after entering.

The home terminals require simple programming done from the outdoor panel. By means of this programming a call code is assigned to each terminal (telephone or monitor). Communication is private.

Wiring. Audio: 3-wire bus. Video: UTP CAT5 / 5 wire / 3 wire + Coaxial (video).

Features:

• Aluminium finish
• Keypad built into panel
• City Line range

Technical Specifications:

• Power supply 18 Vdc
• Lighting LEDs consumption: 3,5 mA per card slot.
• Consumption in standby 57 mA, call 180mA, active audio 310mA and audio + video: 390mA (camera consumption: 80mA)
• Card slot module LED lighting: 35 mA per module
• Audio capacity home-outdoor panel: 2W
• Audio capacity outdoor panel-home: 0.15W
• Operating temperature: -10 to 60 ¼C

• Image Output: 1.1Vp-p/75ohm
• Resolution: 350TV Lines
• Pixels: PAL 500(H) x 582(V) 290Kp / NTSC 510(H) x 492(V) 250Kp
• Viewing angle: 90¼
• Light sensitivity: 0.1 Lux
• Pan&Tilt: 10¼



Dimensions:

• Panel measurements: 130 x 246 mm (width-height)
• Flush-fit box dimensions: 115 x 233 x 45 mm (height-width-depth)
• Surface mounted box dimensions: 130 x 246 x 33 mm (height-width-depth)
