Fermax Module Frame for Skyline Entrance Panels (Size: 8V-S9)

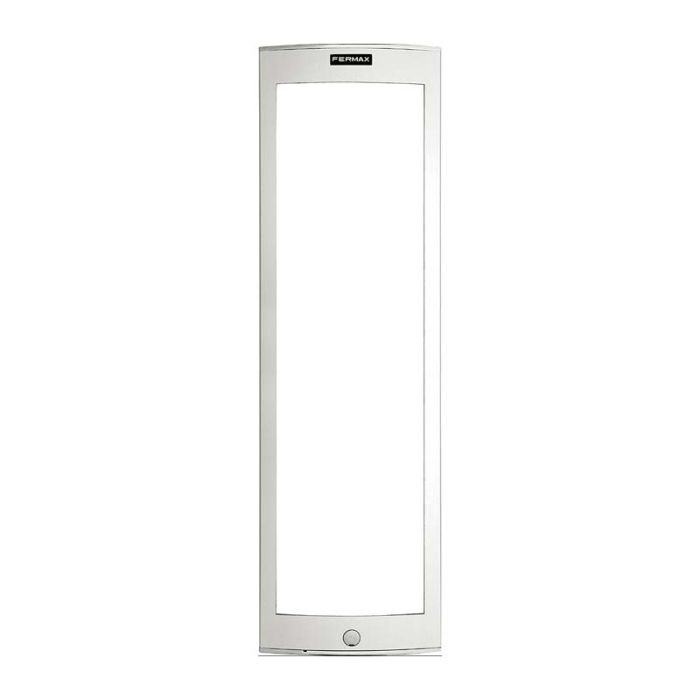

Fermax F-7338 Skyline Frame 8V Serie 9 for Door Entry Panels

The Fermax F-7338 is a Serie 9 frame from the Skyline modular outdoor panel range. It accommodates up to 8V equivalent module slots, offering the second largest frame in the range for extensive module configurations including video, audio, pushbutton, keypad, display, proximity reader and informative modules. Two module sizes are available: V and W, where a W module occupies twice the space of a V module.

Multiple frames from the same series can be combined using joining bolts (ref. 8829) to extend capacity. The Skyline system supports up to 99 pushbuttons per panel with a DUOX PLUS amplifier. The aluminium-silver finish, chromed zamak pushbutton reinforcements and watertight tapes ensure long-term outdoor durability.

Key Features

• Serie 9 frame accepting up to 8V equivalent modules
• Modular clip-on assembly for rapid module installation
• Combinable with additional Serie 9 frames via joining bolts ref. 8829
• Compatible with all Skyline V and W modules
• Chromed zamak pushbutton reinforcements
• Watertight tapes for water and dirt protection
• IP43 IK07 rated when fully assembled

Dimensions

• Frame: 130 x 436.5 mm (W x H)
• Flush box: 115 x 420.5 x 45 mm
• Surface box: 130 x 436.5 x 33 mm

Technical Specifications

• Frame width: 130 mm
• Frame height: 436.5 mm
• Module capacity: 8V or equivalent W combinations
• Protection rating: IP43 IK07 (assembled panel)
• Finish: Aluminium-silver
• Series: Serie 9
