Fermax Electric Strike 540Aa Max

£42.66 £35.55
In stock
SKU
F-1780
In Stock
Free Delivery
  • Free Delivery on orders over £50
  • Applies to orders for IN STOCK items totalling £50 ex. VAT

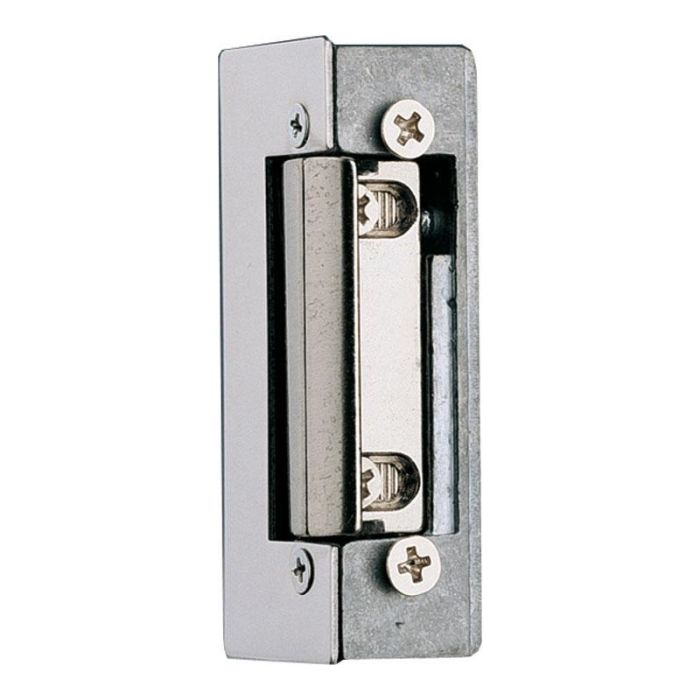

Fermax 1780 - Electric Strike 540Aa Max

Precision lock release with quick silent unlocking for high security entry access solutions.

Fermax 1780 Electric Strike 540Aa Max (12Vac Auto Fail Secure + Override)

The Fermax 1780 is the Body component of an Electric Lock Release designed for 12V AC systems, featuring automatic re-Locking, Fail-Secure operation, a manual override Lever, and an Adjustable Latch. The designation 540Aa MAX signifies: 540 Standard Body series, Aa operation (Automatic Fail Secure AC with Manual Override), and MAX Adjustable Latch. A separate shield/Faceplate is needed to complete the assembly.

Key characteristics: The 540 Standard Body size fits typical frame preparations. The Aa operation offers enhanced functionality: it is Fail Secure (Locked without power), unLocks on a 12V AC pulse, automatically re-Locks mechanically after the Door cycles open/closed, and includes a manual override Lever (a) allowing the Strike to be temporarily set to an Unlocked state for free passage. The MAX Adjustable jaw (±4mm) aids installation by allowing precise alignment with the Door Latch.

This Strike Body is ideal for 12V AC Fermax systems where the combination of automatic re-Locking security, Fail-Secure reliability, and the convenience of a manual override is required. The Adjustable Latch further simplifies installation. Choose this Body and pair it with a compatible Fermax shield (e.g., S-type) for a versatile AC Lock Release solution.

Features

  • Standard Duty Electric Lock Release Body
  • Model Type: 540Aa MAX
  • Operation: Aa - Automatic Fail Secure AC with Manual Override Lever
  • Voltage: 12V AC
  • Latch: MAX Adjustable Jaw (+/- 4mm adjustment)
  • Includes Manual Override Lever (pestillo) capability
  • Automatic re-Locking function after Door cycle
  • Fail Secure operation (Locked on power Failure)
  • Reversible design (Left/Right DIN)
  • Symmetrical Body
  • Suitable for Standard timber and metal frames
  • Requires separate compatible shield/Faceplate

Technical Specifications

  • Manufacturer: Fermax
  • Model Reference: 1780 (Body Type 540Aa MAX)
  • Operation Mode: Automatic Fail Secure AC with Manual Override
  • Input Voltage: 12V AC
  • Body Series: 540 (Standard)
  • Latch: MAX Adjustable

Dimensions

  • Body Dimensions (540 approx): 75mm x 21mm (height x width) - depth varies.
More Information
Brand Fermax
