Fermax DUOX PLUS Direct City Video Panel

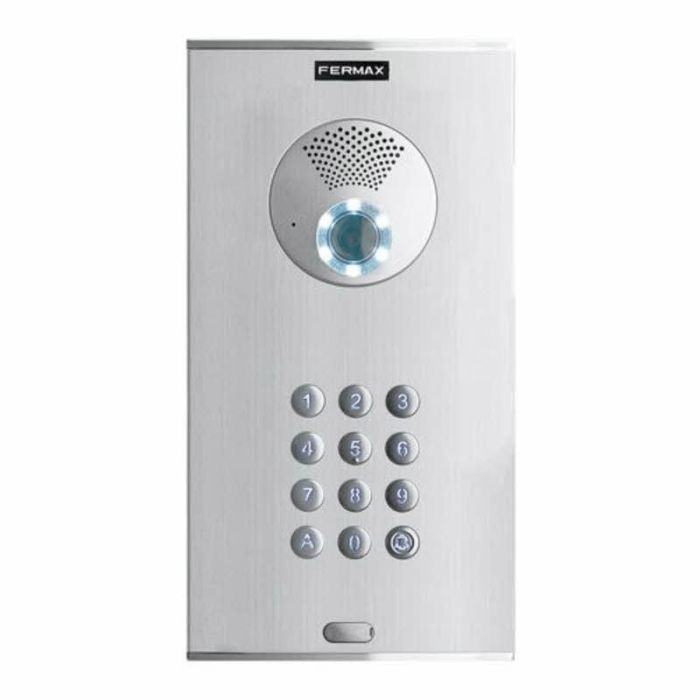

Fermax 73621 DUOX PLUS Direct City Video Panel

Cityline is the "monoblock profile" outdoor panel line for buildings. Installed in the accesses to the building, it allows communication with the dwellings, door opening, call to the guard, etc...

This panel model is more robust and of greater aesthetic and functional quality. It integrates, in its video door entry version, the audio and video functions in the same module.

It is characterized by its curved-convex profile maintaining the same characteristics of it's predecessor the City Classic. There is total compatibility between both models, ensuring their immediate replacement.

It is made of anodised aluminium, highly resistant to weather and climate changes (IP43 IK07). It incorporates new materials such as chrome-plated zamak in the covers and the pushbuttons. The front of the amplifier is made of aluminium and the interior is protected by a stainless steel grid.

It incorporates a large angular colour camera camera with integrated lighting and a regulation system for the camera's focus.

Access Control: through the numeric keypad it incorporates access control functions by means of a keypad code (previously programmed). The keypad allows 1 code to open the door.

The Cityline panel does not include the flush or surface box. This must be ordered separately.

Technical Specifications:

• Finish: Aluminium
• Technology: DUOX
• System: DUOX PLUS (2-wire digital)
• large anfular colour camera camera with integrated lighting
• Resolution > 368x288 pixels
• Viewing angle 100¼ horizontal, 80¼ vertical
• Fisheye correction
• Color night vision through white LEDs
• Pan & Tilt digital zoom
• Backlit keypad
• Power supply: 18-24 Vdc
• Consumption: Stand-by 94 mA, Active audio 550 mA
• Protection: IP43 / IK07
• Audio power home-street direction: 2W
• Audio power street-wise: 0.15W
• Volume adjustable in both directions
• Operating temperature (C): -25 to +70

Dimensions:

• Panel: 246 x 130 (hw mm)
• Flush box: 223 x 115 x 45 (hwd mm)
• Surface box: 246 x 130 x 33 (hwd mm)
