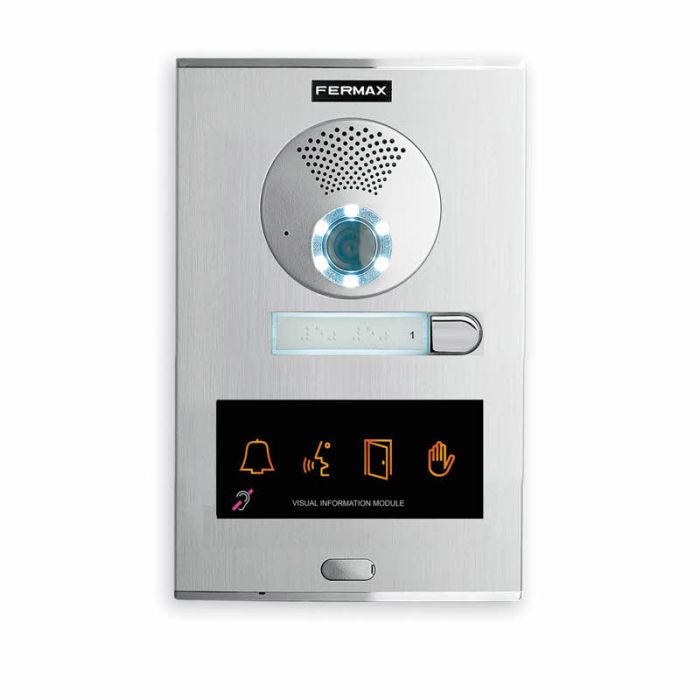

Fermax DUOX PLUS City Panel with DDA Visual Info. Module (S4 CVP101)

Fermax 73891 DUOX PLUS City Panel with DDA Visual Info. Module (S4 CVP101)

Cityline is the "continuous profile" outdoor panel line for buildings. Installed in the accesses to the building, they allow communication with the dwellings, opening the door, calling the concierge, etc...

This model of panel is more robust and of greater aesthetic and functional quality. The design integrates, in its video door entry version, the audio and video functions in the same module.

It is characterised by its curved-convex profile, maintaining the same characteristics as its predecessor, the City Classic. There is total compatibility between both models, ensuring their immediate replacement.

It is made of anodized aluminum, highly resistant to weather and climate changes (IP43 IK07). It incorporates new materials such as chrome zamak in heads and buttons. The front of the amplifier is made of aluminium and the interior is protected by a stainless steel grille.

It incorporates a wide angle colour camera camera with integrated lighting and a regulation system for the camera's focus.

The outdoor panel includes the OneToOne information module with inductive loop. The "OneToOne" module with inductive loop shows the status of the panel by means of 4 LED icons. These icons symbolize:

• Call
• Conversation
• Door opening
• Channel busy

In addition, each of the sounds and audio played by the amplifier, are emitted by the inductive loop to the devices of the disabled people.

The Cityline panels do not include the flush or surface box. This must be requested separately.

Features:

• Finish: Aluminium
• OneToOne information module
• Injected zamak call buttons with chrome finish
• Waterproof for exteriors
• Equipped with special gold-plated contacts for greater durability
• Pressing the call button is confirmed by an acoustic signal from the amplifier
• Pushbutton includes a polycarbonate card holder and integrated lighting
• Includes integrated Memokey keypad (up to 100 codes, 100 users)

Techncial Specifications:

• Technology: DUOX
• System: DUOX PLUS (2-wire digital)
• Lighting LED consumption: 3.5 mA per card slot
• Power supply: 18-24 Vdc
• Consumption: Standby: 240 mA, Active audio: 560 mA
• Protection: IPK 437
• Audio power home-street direction: 2W
• Audio power street-home: 0.15W
• Volume can be adjusted in both directions
• Operating temperature (C): -25 to +70

Dimensions:

• Panel: 199 x 130 (hw mm)
• Flush box: 185 x 115 x 45 (hwd mm)
• Surface box: 199 x 130 x 33 (hwd mm)
