Fermax DUOX PLUS City Digital Video Panel

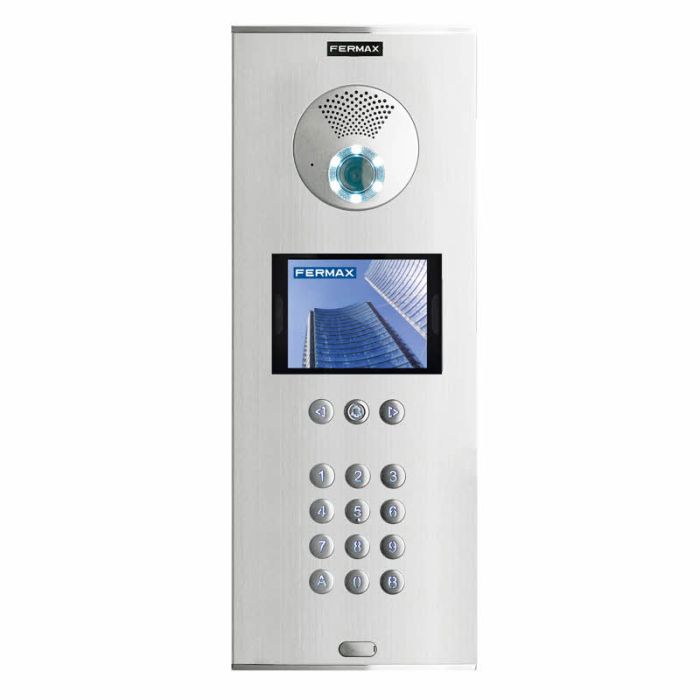

Fermax 73871 DUOX PLUS City Digital Video Panel

Cityline is the "monoblock profile" outdoor panel line for buildings. Installed in the accesses to the building, it allows communication with the dwellings, door opening, call to the guard, etc...

This panel model is more robust and of greater aesthetic and functional quality. It integrates, in its video door entry version, the audio and video functions in the same module. It is characterized by its curved-convex profile maintaining the same characteristics of its predecessor the City Classic. There is total compatibility between both models, ensuring their immediate replacement.

It is made of anodised aluminium, highly resistant to weather and climate changes (IP43 IK07). It incorporates new materials such as chrome-plated zamak in the covers and the pushbuttons. The front of the amplifier is made of aluminium and the interior is protected by a stainless steel grid.

It incorporates a large angular colour camera with integrated lighting and a regulation system for the camera's focus. The Duox Plus display module allows the search and display of the list of neighbours (electronic directory) by means of the navigation buttons (arrow keys), as well as informing about the communication status. The navigation buttons also allow you to move through the programming menu.

Access Control: through the numeric keypad it incorporates access control functions by means of keypad codes (previously programmed). The keypad allows up to 10,000 codes to open the door.

The Cityline panel does not include the flush or surface box. This must be ordered separately.

Technical Specifications:

• Technology: DUOX
• System: DUOX PLUS (2-wire digital)
• Finish: Aluminium
• Large angular colour camera with integrated lighting
• Backlit keypad
• 3.5" electronic directory
• Power supply: 18-24 Vdc
• Consumption: Stand-by: 260 mA, Active audio: 580 mA
• Protection: IP43 Ñ IK07
• Audio capacity home-outdoor panel: 2W
• Audio capacity outdoor panel-home: 0.15W
• Two-way volume control
• Operating temperature (C): -25 to +70
• Relative humidity: 5% - 95%

Dimensions:

• Panel: 341 x 130 (hw mm)
• Flush box: 328 x 115 x 45 (hwd mm)
• Surface box: 341 x 130 x 33 (hwd mm)
