Fermax DUOX PLUS City Digital Audio Panel
£1,146.74
£955.62
SKU
F-73852
- This product is available to order. The lead time is normally 30 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

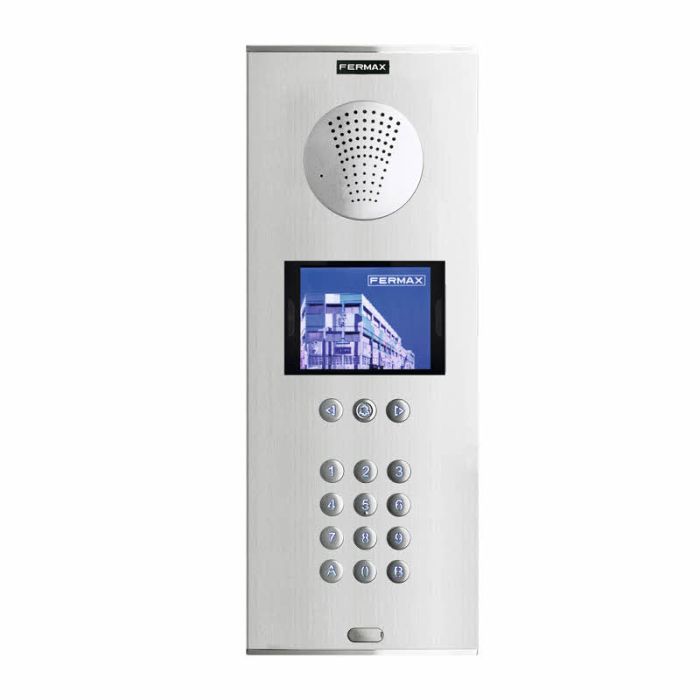

Fermax 73852 DUOX PLUS City Digital Audio Panel. A state-of-the-art audio panel designed for seamless integration into DUOX PLUS systems, offering enhanced security and convenience.
Fermax 73852 DUOX PLUS City Digital Audio Panel
Cityline is the "monoblock profile" outdoor panel line for buildings. Installed in the accesses to the building, it allows communication with the dwellings, door opening, call to the guard, etc...
This panel model is more robust and of greater aesthetic and functional quality. It integrates, in its video door entry version, the audio and video functions in the same module. It is characterized by its curved-convex profile maintaining the same characteristics of its predecessor the City Classic. There is total compatibility between both models, ensuring their immediate replacement.
It is made of anodised aluminium, highly resistant to weather and climate changes (IP43 IK07). It incorporates new materials such as chrome-plated zamak in the covers and the pushbuttons. The front of the amplifier is made of aluminium and the interior is protected by a stainless steel grid.
The Duox Plus display module allows the search and display of the list of neighbours (electronic directory) by means of the navigation buttons (arrow keys), as well as informing about the communication status. The navigation buttons also allow you to move through the programming menu.
Access Control: through the numeric keypad it incorporates access control functions by means of keypad codes (previously programmed). The keypad allows up to 10,000 codes to open the door.
.The Cityline panel does not include the flush or surface box. This must be ordered separately.
Technical Specifications:
- Technology: DUOX
- System: DUOX PLUS (2-wire digital)
- Finish: Aluminium
- Backlit keypad
- 3.5" electronic directory
- Power supply: 18-24 Vdc
- Consumption: Stand-by: 260 mA, Active audio: 580 mA
- Protection: IP43 Ñ IK07
- Audio capacity home-outdoor panel: 2W
- Audio capacity outdoor panel-home: 0.15W
- Two-way volume control
- Operating temperature (C): -25 to +70
- Relative humidity: 5% - 95%
Dimensions:
- Panel: 341 x 130 (hw mm)
- Flush box: 328 x 115 x 45 (hwd mm)
- Surface box: 341 x 130 x 33 (hwd mm)
| Brand | Fermax |
|---|---|
| Audio or Video | Audio |
| Trade Button | Trade Button - NO |
| Call Buttons | 999 Digital Call |
| Digital Call | Digital Call |
| Mounting | Surface Mount |
| Finish | Aluminium-Silver |
| Access Control Options | Keypad - built into panel |
| Range | Fermax City Line |
| Cabling | Fermax DUOX 2 wire BUS cabling |
