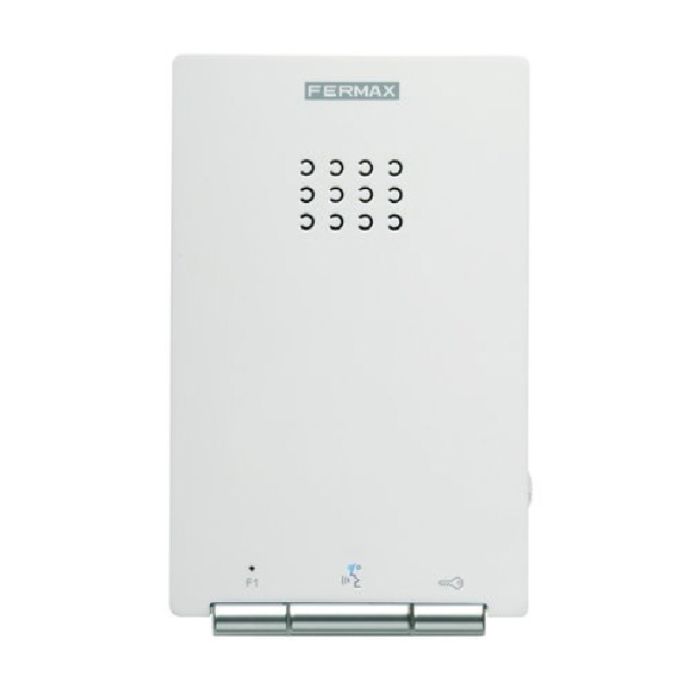

Fermax DUOX PLUS iLOFT Surface Mount Handsfree Telephone

Fermax 3450 DUOX PLUS iLOFT Telephone

The iLOFT telephone is a compact and extra slim door entry system that works in hands-free communication with the outdoor panel. Configurable in Push-to-talk mode if needed for very noisy surroundings.

The integrated digital audio DUOX PLUS technology (2 non-polarized wires) ensures a high quality, hands-free communication without interferences. Sequential volume control with a sliding wheel.

Equipment manufactured in ABS plastic with ultraviolet protection and elegant matt finish for easy cleaning. Surface installation.

Features:

• Audio
• Surface mounted
• Colour: Matt white
• Pushbuttons: 3 x Mechanical
• Hands-free communication
• Press-to-talk communication configurable
• Number of LEDs: 3 (red, blue and green)
• Ring tones selection
• Call volume control
• Do-not-disturb mode
• Audio volume control

Technical Specifications:

• Conversation time: 90s
• Conversation privacy
• Voltage: 18-24 Vdc
• Maximum consumption: 3.6 W
• Standby consumption: 0.4 W
• Working temperature (C): -5 to +40
• Humidity: 0%, 90%
• Line adaptor included in the terminal (A, C, default position OFF)
• Guard unit call (By means of the door release button when in standby)
• Auto-on (Only with panel number 0 of its own block)
• Additional function F1 (Button F1 sends a negative and/or command)
• Apartment door bell differentiated from the outdoor panel
• Connection for additional devices (call extension, light/buzzer activator)
• Doormatic (automatic door release for offices): Green led indication
• Time to answer or open the door since the call is done: 30s
• Connections: Bin, Bin, Bout, Bout, -, A+, F1, T
• Technology: DUOX PLUS (non-polarized 2 wire full digital system)

Dimensions:

• 146.5 x 90 x 20 (hwd mm)
