Fermax Digital Vandal Resistant Video Panel with Prox Reader

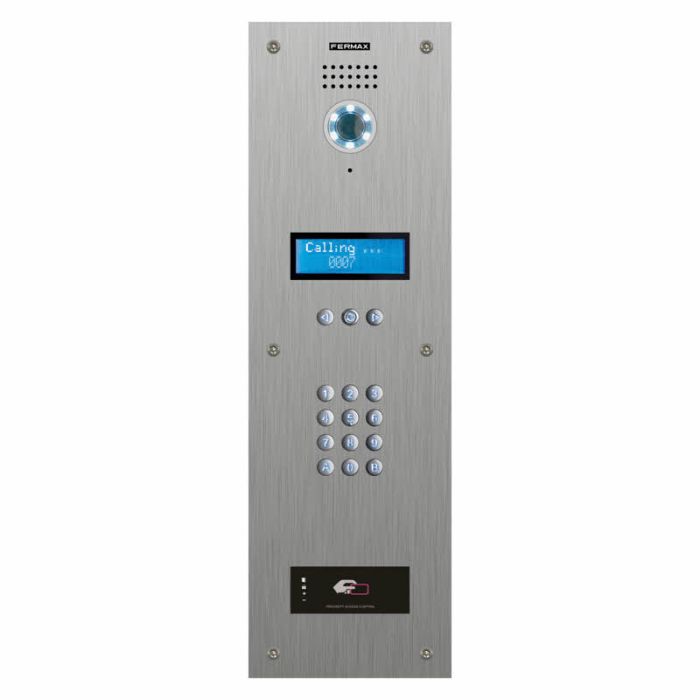

Fermax SLV99X Digital Display Vandal Resistant Marine Video Door Entry Panel with Proximity Reader

This Marine range entrance panel is manufactured from 2.5mm thick vandal resistant stainless steel, guaranteeing maximum durability against weather and vandalism.

The panel is attached to the flush box using vandal resistant safety screws which are also stainless steel and can only be removed using a special key, alternatively the panel can also be surface mounted using a surface box.

The audio amplifier features a 32 language voice synthesizer which emits a message when the lock release is activated. For extra durability the speech unit has been designed to withstand the most adverse weather conditions.

The video wide angle 3.6mm camera lens has built-in LED lighting which improves video clarity in low lighting conditions. The camera has a pan and tilt regulation system to adjust the lens 10 degrees in any direction to get the best viewing position.

This panel uses Fermax's VDS audio 3 wire system, a simplified installation that does not use house call wires, instead the call is made by transmission of a digital call code generated by the VDS audio amplifier.

Please note: The camera module must be purchased separately. In order to complete the installation of a basic door entry system, power supplies and video receivers for each user will be required.

Features

• Digital display
• Digital call keypad module
• Proximity reader for access control
• Cutout to suit wide angle camera lens
• Vandal resistant build with safety screws
• Increased resistance to corrosion

Technical Specifications:

• Camera viewing angle: 90 degrees
• Power supply: 18V DC
• Compatible with most wiring types by Fermax

Dimensions:

• Size ST4: 485 x 150 x 55 (mm hwd)
