Fermax Camera Interface (Integrates CCTV Cameras in DUOX PLUS System)

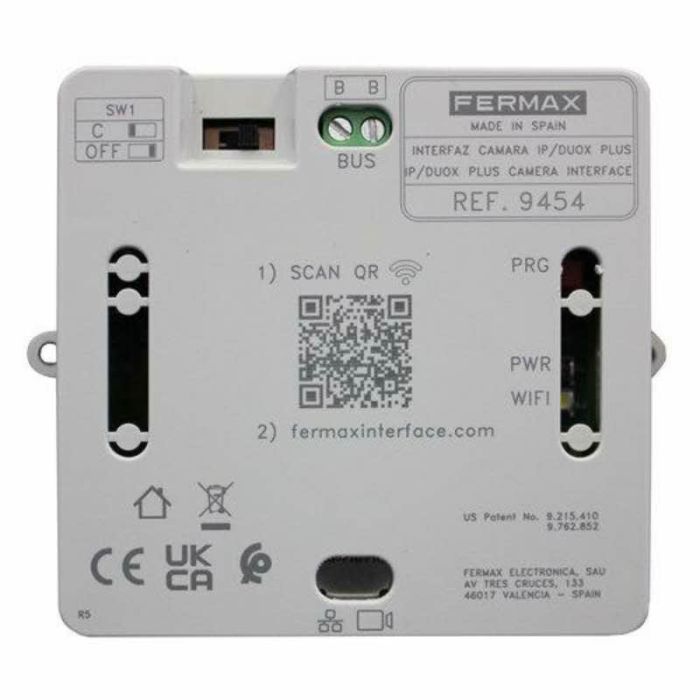

Fermax 9454 IP/DUOX PLUS Camera Interface

Allows the integration of IP video CCTV cameras in a DUOX PLUS installation. It transforms the IP video signal (RTSP standard protocol) into a DUOX PLUS signal that is connected directly to the DUOX PLUS bus.

Generally, an interface will be required for each camera installed in the DUOX PLUS installation. However, in the particular case of 2 cameras in the same Block, up to 2 cameras can be configured in the same interface (in this case a PoE switch will be necessary).

Each camera will be powered externally with its additional power supply (ref. 9982 + ref. 9984) or through a PoE switch. The interface will be powered directly from the DUOX PLUS bus.

Configurable by Wi-Fi, from the mobile through an embedded webserver.

An entrance panel can be associated to the interface, in such a way that, while the IP camera is being viewed, the opening of said associated entrance panel can be activated.

Technical Specifications:

• Consumption at rest: 18Vdc - 140mA (max), 24Vdc - 104mA (max)
• Active Consumption: 18Vdc - 153mA (max), 24Vdc - 110mA (max)
• Operating Temperature (C): -10 to +55
• Humidity (non-condensing): 5% to 90%
• Technology: DUOX

Dimensions:

• 86 x 106 x 31 (hwd mm)
