Fermax VDS Marine Audio Keypad Amplifier

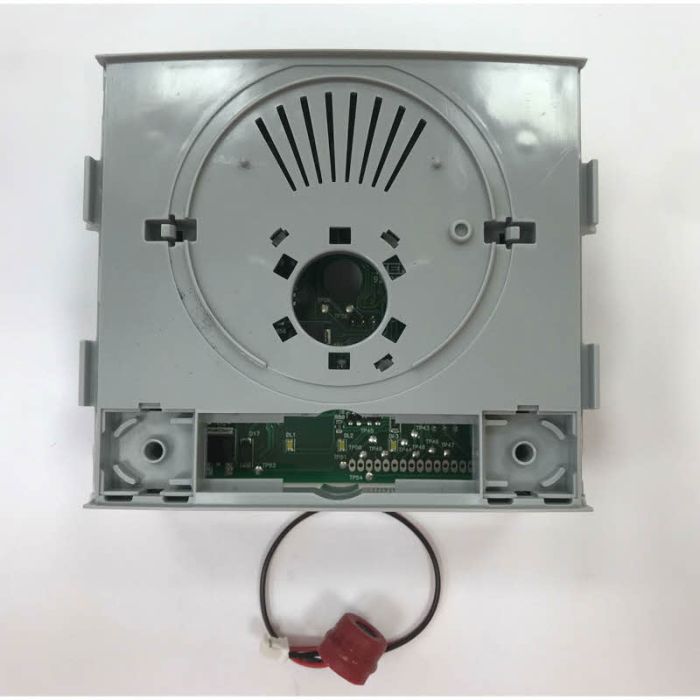

Fermax F-9635 VDS Marine Audio Amplifier with Keypad Display

The Fermax F-9635 is a VDS audio amplifier replacement module designed for inclusion in Fermax Marine door entry panels with keypad and display. Installed at building entrances, it enables communication with dwellings, door opening, guard unit calling and access control via the VDS digital bus system. The VDS amplifier includes a voice synthesiser as standard, announcing a door open confirmation message when the lock release is activated.

Key Features

• VDS digital bus system — no house call wires required
• Manages up to 199 homes, 2 entrance accesses and a central guard unit
• Built-in voice synthesiser with multi-language door open message
• Keypad and display interface for direct dialling
• Private communication between panel and dwelling
• Simple terminal programming from the outdoor panel
• Two-way adjustable volume control
• Replacement module for Marine panel range

Technical Specifications

• Power supply: 18 Vdc
• Current draw (standby): 40 mA
• Current draw (audio active): 250 mA
• Current draw (lighting per lamp): 70 mA
• Audio power (dwelling to panel): 2 W
• Audio power (panel to dwelling): 0.15 W
• Volume control: Adjustable in both directions
• Operating temperature: -10 to +60 C
• Wiring (audio): 3-wire bus
• Wiring (video): UTP CAT5 / 5-wire / 3-wire + coaxial
• Maximum distance (first access to last dwelling): 200 m
• Replaces references: 980384
