Fermax MEET MILO Digital Video Touch Panel with Proximity Reader

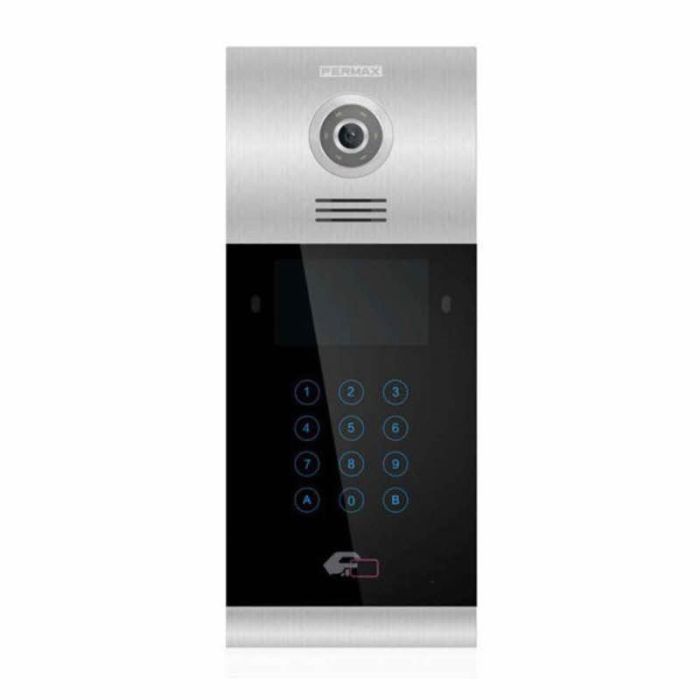

Fermax F-9532 MEET MILO Touch Digital Video Panel with Proximity Reader

The Fermax F-9532 is a MILO digital video door entry panel with capacitive touch keypad for the Fermax MEET IP system. It features a 4.3 inch TFT colour display, 1.2 Megapixel CMOS camera with automatic white LED illumination, integrated MIFARE proximity reader supporting up to 100,000 cards, and facial recognition for up to 6,000 faces with liveness detection. The panel is constructed from aluminium and tempered glass.

Configurable via a built-in web server, the panel supports SIP protocol for call forwarding to smartphones via the MEET ME app, RTSP video streaming, Wiegand input/output for third-party access control integration, and RS485 connectivity for relay modules, lift control gateways and guest code modules. It is designed for flush-mount installation with the recessed box top edge at 1.70 m from floor level.

Key Features

• 4.3 inch TFT colour display (480 x 272 resolution)
• Capacitive touch keypad
• 1.2 Megapixel CMOS colour camera (72 deg H, 54 deg V)
• Integrated MIFARE proximity reader (up to 100,000 cards)
• Facial recognition (up to 6,000 faces with liveness detection)
• Up to 8 access PIN codes (4-6 digits)
• SIP protocol support with MEET ME app call forwarding
• RTSP video streaming
• Wiegand input/output for third-party access control
• RS485 bus for relay modules, lift control and guest code modules
• Built-in web server for configuration
• Tamper detection with acoustic alarm
• Door sensor and fire alarm inputs
• Exit button connection
• PoE or 12 Vdc power supply
• Remote firmware update capability
• Multi-language support (10 languages)

Technical Specifications

• System: MEET IP video door entry
• Working voltage: 12 Vdc or PoE
• Standby current: 250 mA
• Working current: 500 mA
• Display: 4.3 inch TFT, 480 x 272, 4:3 format
• Display viewing angle: 110 deg H, 90 deg V
• Display contrast: 400:1
• Display brightness: 200 cd/m2
• Camera: 1/3 inch CMOS, 1.2 Megapixel
• Camera minimum illumination: 0.5 Lux
• Audio codec: G.711
• Maximum conversation time: 120 seconds
• Door relay timer: 1-9 seconds
• Door relay activation delay: 0-9 seconds
• Maximum ID cards: 100,000
• Maximum facial recognition faces: 6,000
• Maximum access PINs: 8 (4-6 digits each)
• RF module frequency: 13.56 MHz
• RF module max power: 2.45 mW
• Operating temperature: -40 to +70 degrees C
• Humidity: 20-80% non-condensing
• Protection class: IP54
• Default IP: 10.1.0.1
• Mounting: Flush mount (recessed box)

Dimensions

• Panel: 155 x 380 x 48 mm (W x H x D)
• Flush box: 143 x 357 x 58 mm (W x H x D)
