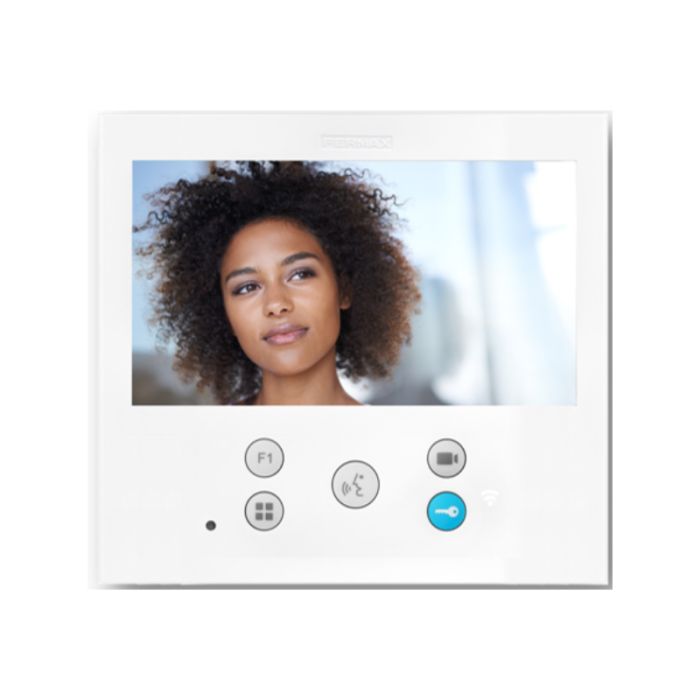

Fermax DUOX PLUS 7 Inch VEO-XL Video Monitor

Fermax 9468 DUOX PLUS 7 Inch VEO-XL Monitor

The hands-free DUOX PLUS VEO-XL monitor is characterized by its small size and extra-flat thickness.

Thanks to its OSD menu and the layout of the buttons, interaction with the user is simple and intuitive.

It is made of high impact ABS plastic and has a texturised finish for easy cleaning and ultraviolet protection.

VEO-XL incorporates a 7 inch (16:9) panoramic colour TFT screen. Its balanced design of pure lines is distinguishing, modern and minimal.

This product requires the 9447 DUOX VEO monitor connector.

Features:

• Finish: ABS plastic, matt white
• Hands-free
• OSD menu
• Pushbuttons: five mechanical (silicon)
• Mounting: Surface (requires F-9447)
• Display: 7 inch (panoramic 16:9) colour TFT screen
• Automatic picture capture when the visitor calls (PHOTOCALLER)

Technical Specifications:

• System: DUOX Plus (non polarised 2 wire full digital system)
• Conversation time (s): 90
• Screen resolution (H x V): 800 x 400 pixels
• Voltage: 18-24 Vdc
• Maximum consumption (W): 9
• Standby consumption (W): 1.15
• Working temperature (C): -5 to +40; Humidity 0%, 90%

Dimensions:

• 185 x 185 x 21 (hwd mm)
