Fermax Marine Duox Plus Digital Display Module

Fermax F-9310 Marine DUOX PLUS Digital Display Module

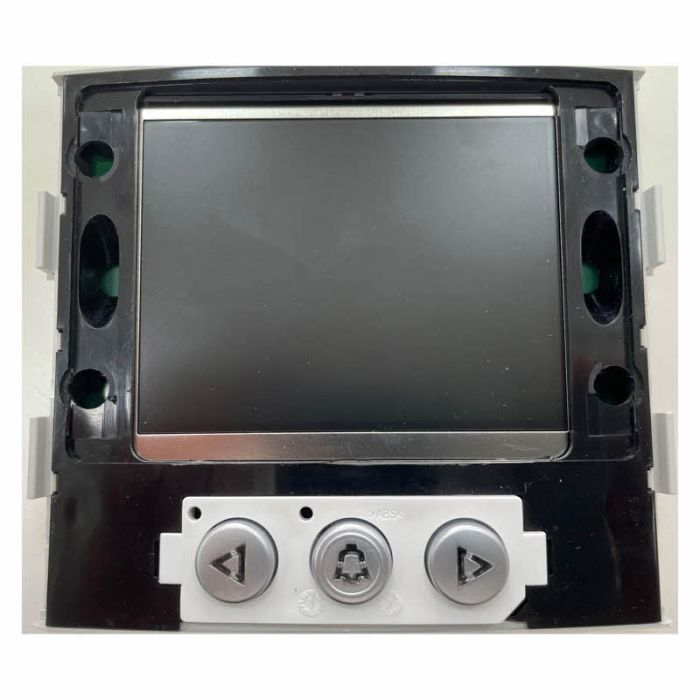

The Fermax F-9310 is a 3.5-inch TFT graphic display module designed for Marine door entry panels operating on the DUOX PLUS system. It provides an electronic directory supporting up to 10,000 users, allowing visitors to search for residents by name using the navigation buttons or enter a call code directly via the keypad.

Calls to apartments can be made in two ways: by entering the corresponding code assigned to the property followed by the bell key, or by searching the electronic directory for the resident name using the arrow keys and pressing the bell key once found. The navigation buttons also allow installers to move through the programming menu for system configuration.

The display module connects to the DUOX PLUS amplifier via the CN1 connector and is compatible with amplifiers running audio firmware V 30.10 or lower and video firmware V 40.10 or lower.

Key Features

• 3.5-inch TFT graphic display (4:3 format)
• Electronic directory for up to 10,000 users
• 320 x 240 pixel resolution with 262,000 colours
• 400 nits luminance for clear visibility
• 160 degree horizontal and vertical viewing angles
• Presence sensor or keypress display activation
• Navigation buttons for directory search and programming
• Compatible with DUOX PLUS Marine panels

Technical Specifications

• System: DUOX PLUS
• Display size: 3.5 inches
• Display format: 4:3
• Resolution: 320 x 240 pixels
• Colours: 262,000
• Contrast ratio: 500:1
• Luminance: 400 nits
• Viewing angle: 160H / 160V
• Backlight: 6 LEDs
• Directory capacity: 10,000 users
• Supply voltage via CN1: 5 V (pin 1) with 5% tolerance
• PWR input: 12 Vdc +5% (DUOX)
• Consumption standby: 88 mA +/-10%
• Consumption TFT on: 134 mA +/-10%
• Operating temperature: -25 to +70 degrees C
• Relative humidity: 5% to 95%

Dimensions

• 105.2 x 95 x 20 mm (H x W x D)
