Fermax F-8300 1 Button City Classic Kit Audio Panel

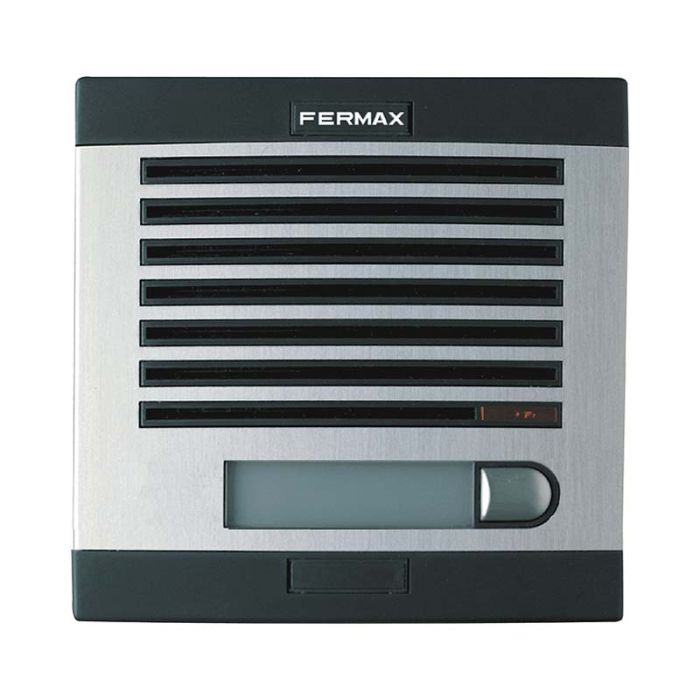

The Fermax F-8300 is a single push button audio door entry panel from the City Classic range, designed for 4+N analogue systems. It is supplied with the KIT amplifier (basic) and a plastic flush box (ref. 8948) for flush-mounted installation. The panel features a curved anodised aluminium profile with a cellular rubber airtight seal to prevent water infiltration. The illuminated call button includes a card slot for resident name labelling.

For surface mounting, an additional surface box ref. 8951 is required.

Key Features

• Single push button with illuminated name card holder
• Two-way adjustable volume control
• Flush mount box (ref. 8948) included
• Anodised aluminium construction with airtight rubber seal
• Compatible with Citymax (8044) and City (20440) telephones
• Supports dual-entrance installations with Audio Switcher ref. 8811

Technical Specifications

• Power supply: 12 Vac
• System: 4+N analogue
• Current draw (standby): 90 mA
• Current draw (active audio): 200 mA
• Current draw (calling): 320 mA
• Audio power (terminal to panel): 1 W
• Audio power (panel to terminal): 0.25 W (limited)
• Lamp consumption: 70 mA
• Operating temperature: -10 to +60 C
• Certification: CE

Dimensions

• Panel: 128 x 130 mm (H x W)
• Flush box: 115 x 114 x 45 mm (H x W x D)
