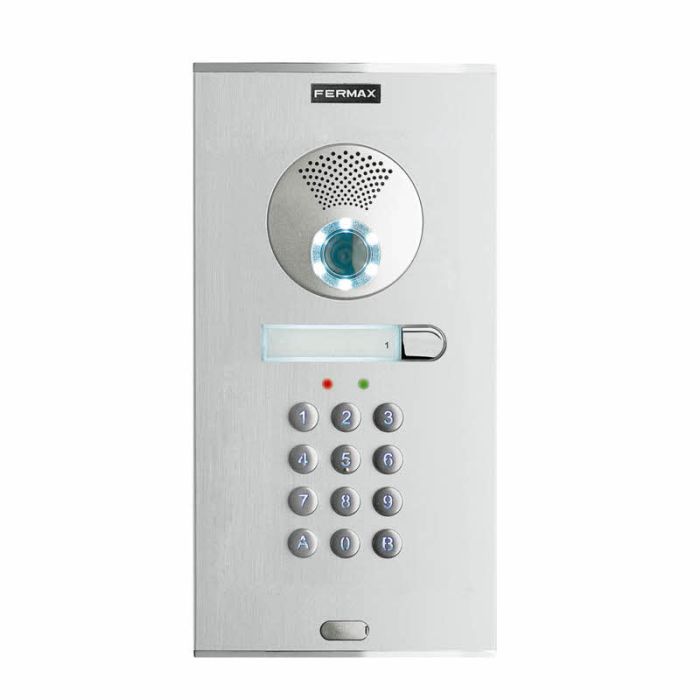

Fermax DUOX PLUS 1 Way Memovision Cityline Single-Family Video Panel

Fermax 73881 DUOX PLUS 1 Way Memovision Cityline Video Panel

Cityline is the "continuous profile" outdoor panel line for buildings. Installed in the accesses to the building, they allow communication with the dwellings, opening the door, calling the concierge, etc...

This model of panel is more robust and of greater aesthetic and functional quality. The design integrates, in its video door entry version, the audio and video functions in the same module.

It is characterised by its curved-convex profile, maintaining the same characteristics as its predecessor, the City Classic. There is total compatibility between both models, ensuring their immediate replacement and replacement.

It is made of anodized aluminum, highly resistant to weather and climate changes (IP43 IK07). It incorporates new materials such as chrome zamak in heads and buttons. The front of the amplifier is made of aluminium and the interior is protected by a stainless steel grille.

It incorporates a wide angle colour camera with integrated lighting and a regulation system for the camera's focus.

Cityline outdoor panels do not include the flush or surface box. This must be ordered separately.

Features:

• Finish: Aluminium
• Injected zamak call buttons with chrome finish
• Waterproof for exteriors
• Equipped with special gold-plated contacts for greater durability
• Pressing the call button is confirmed by an acoustic signal from the amplifier
• Pushbutton includes a polycarbonate card holder and integrated lighting
• Includes integrated Memokey keypad (up to 100 codes, 100 users)

Techncial Specifications:

• Technology: DUOX
• System: DUOX PLUS (2-wire digital)
• Lighting LED consumption: 3.5 mA per card slot
• Power supply: 18-24 Vdc
• Consumption: Standby: 94 mA, Active audio: 550 mA
• Protection: IPK 437
• Audio power home-street direction: 2W
• Audio power street-home: 0.15W
• Volume can be adjusted in both directions
• Operating temperature (C): -25 to +70

Dimensions:

• Panel: 246 x 130 (hw mm)
• Flush box: 233 x 115 x 45 (hwd mm)
• Surface box: 246 x 130 x 33 (hwd mm)
