Fermax MDS Cityline Digital Audio Panel

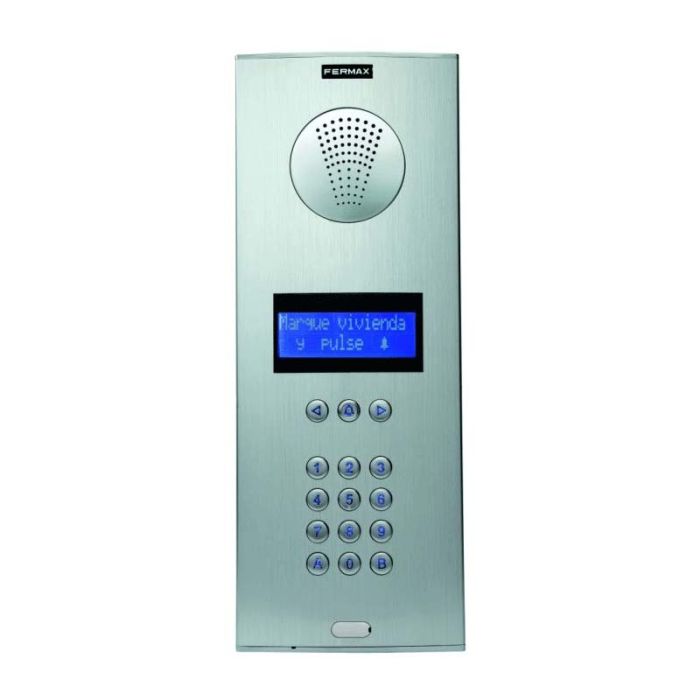

Fermax 7301 MDS Cityline Digital Audio Panel

AN audio panel from Fermax. Its installed at the entrance of a building, it enables communication with homes, door opening, guard unit call , etc.

This new panel model is more robust, more luxurious and higher design and functional quality. The new design, in its video entry version, includes audio and video functions in the same module.

Panel colour aluminium, backlit LCD 2 line display 16 characters each and has a dialling keypad.

MDS Digital system - Simplified BUS installation digital audio and video door entry system that lets you manage buildings and residential complexes.

MDS systems require floor decoders to connect the homes to the installation BUS and act as insulators. Home-panel communication is private.

Wiring: Audio: 6-wire bus and video: audio bus + Coaxial (video) + 2 power supply wires.

Features:

• Aluminium finish
• City Line range

Technical Specifications:

• Power supply audio 12 Vdc and video18 Vdc
• Consumption in standby 242 mA, call 762mA, active audio 542mA and audio + video: 622mA (camera consumption: 80mA)
• Audio capacity home-outdoor panel: 2W
• Audio capacity outdoor panel-home: 0.15W
• Operating temperature: -10 to 60 ¼C

Dimensions:

• Panel Measurements: 341 x130 mm (hw)
• Flush-fit box dimensions: 115 x 328 x 45 mm (hwd)
• Surface mounted box dimensions: 130 x 341 x 33 mm (hwd)
