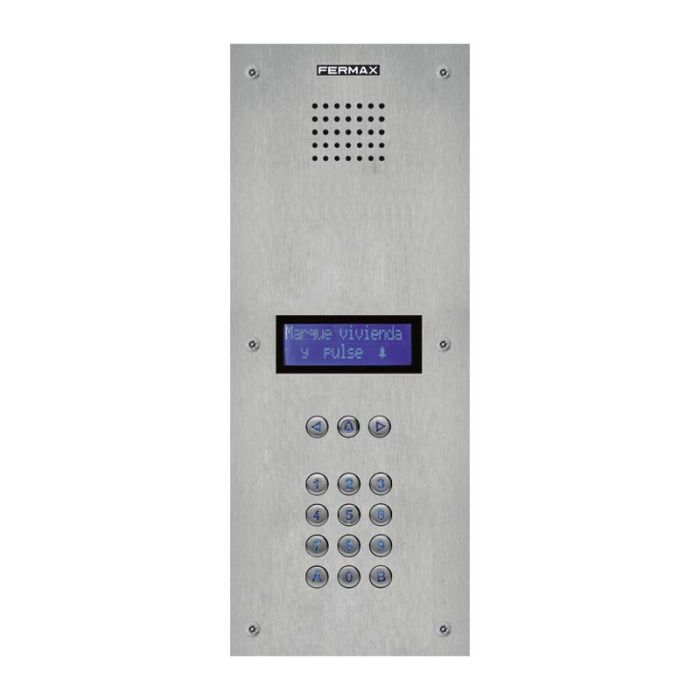

Fermax Marine Audio Panel VDS with Digital Display

Fermax 5465 Marine Audio Panel VDS Digital

Installed in the accesses to the building, they enable communication with homes, door opening, guard unit call, etc.

Marine is the anti-vandal panel line manufactured in 2.5 mm thick stainless steel. Straight lines that highlight the quality of the steel. State of the art technology and resistance to even the most corrosive and humid atmospheres.

Panel colour is aluminium with dialling keypad and backlit LCD 2 line display having 16 characters each.

VDS system: Simplified installation audio and video door entry system that does not use house call wires. The call is made by transmission of a digital call code generated by the VDS amplifier.

Wiring for audio: 3-wire bus and video: UTP CAT5 / 5 wire / 3 wire + Coaxial (video).

Features:

• The house call is made by entering the corresponding code assigned to the home + the bell key.
• Electronic directory: lets you look for the names (home owners/residents) through the display and browser buttons.
• Access Control: incorporates access control functions through the numeric keypad by means of keypad codes (programmed previously).
• Two-way volume control

Technical Specifications:

• Power supply: 18 Vdc
• Consumptions- in standby: 102 mA, call: 232 mA, active audio: 362 mA and audio+video: 442 mA (camera consumption: 80mA)
• Audio capacity home-outdoor panel: 2W
• Audio capacity outdoor panel-home: 0.15W
• Operating temperature: -10 to 60 ¼C

Dimensions:

• Panel measurements 150 x 360 mm (width-height)
• Flush-fit box dimensions: 130x340x55 mm (height-width-depth)
• Surface mounted box dimensions: 154x364x73 mm (height-width-depth)
