Fermax AC-MAX 4-Door Access Control Controller Kit
£1,363.20
£1,136.00
SKU
F-5224
- This product is available to order. The lead time is normally 2 – 4 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product
Fermax F-5224 AC-MAX 4-door access control kit with IP controller, EXP4D expander, PSU and metal enclosure. Supports Wiegand and RS-485 fingerprint readers.
Fermax F-5224 AC-MAX 4-Door Access Control Controller Kit

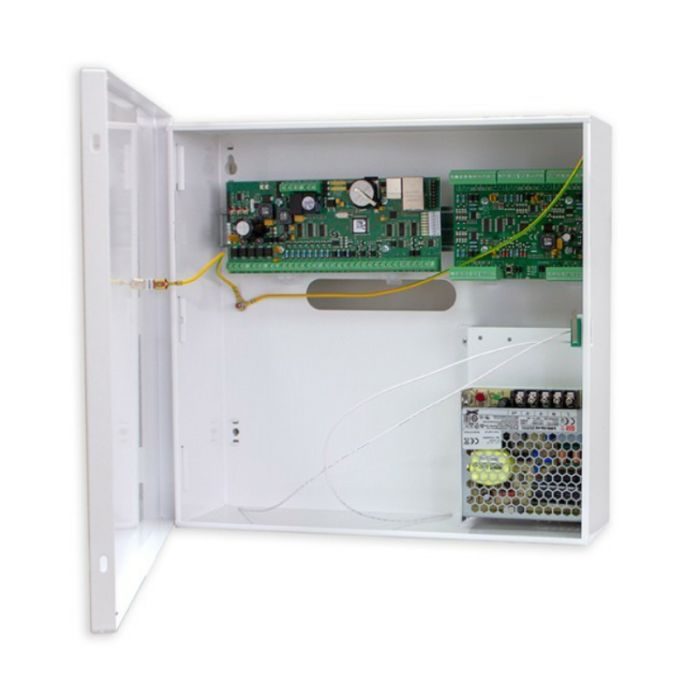

The Fermax F-5224 is a complete 4-door access control kit from the AC-MAX range. The kit comprises an AC-MAX CU IP controller, EXP4D 4-door I/O expander, PWR4D power supply and BOX-IP-16 metal enclosure, all pre-wired for rapid installation. Controlled doors can be managed with both entry and exit readers via RS-485 (FPAC-MAX fingerprint readers) or Wiegand readers for entry-side only. Each door has a dedicated 0.2A reader supply output and a 1.0A lock supply output. The system connects to the free AC-MAX LT 2.0 software via Ethernet for configuration, user management, event logging and real-time monitoring.
Key Features
- 4-door access control in a single pre-wired kit
- AC-MAX CU IP controller with 10/100 Mbps Ethernet
- EXP4D expander with per-door lock, bell, door contact and exit button outputs
- Supports up to 8 Wiegand readers (entry and exit per door)
- RS-485 bus for FPAC-MAX fingerprint readers up to 1200 m
- 8192 credentials per kit
- Managed via free AC-MAX LT 2.0 PC software
- Configurable backup battery charge current (0.3A or 0.6A)
- Overload-protected power outputs on all doors
- Anti-passback, occupancy control and timetable management
- Real-time event logging up to 8,000,000 events
- CCTV video stream integration
- Lift control option with additional expanders
Technical Specifications
- Doors supported: 4
- PSU model: PWR4D
- PSU output: 13.8 Vdc / 5.4 A
- PSU input: 100-240 Vac
- Enclosure: BOX-IP-16 metal
- Controller dimensions: 72 x 175 x 30 mm
- Kit dimensions: 325 x 305 x 100 mm
- EXP4D dimensions: 115 x 80 mm
- Max Wiegand reader distance: 150 m
- Max RS-485 distance: 1200 m
- Relay outputs per door: 2 transistor outputs (LCK and BELL) rated 15V/1.0A
- VDR power per door: 13.8 Vdc / 1.0A (overload protected)
- TML power per door: 13.8 Vdc / 0.2A (overload protected)
- Backup battery: 12V/7-24Ah (optional)
- Operating temperature: +5C to +40C
- Humidity: 10-95% RH (non-condensing)
- Certifications: CE, UKCA, RoHS
| Brand | Fermax |
|---|---|
| Door Inputs | 4 door controller |
