Fermax 4+N New Marine Video Amplifier
£535.39
£446.16
SKU
F-9637
- This product is available to order. The lead time is normally 2 – 4 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

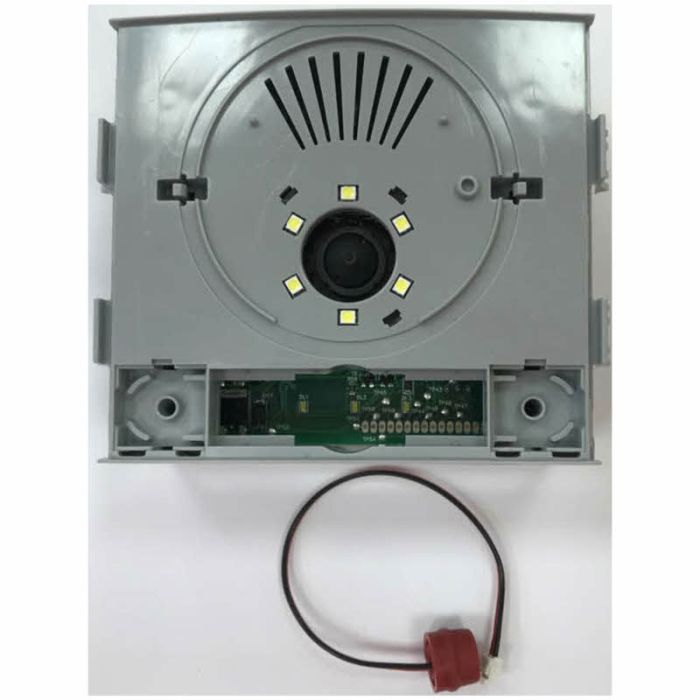

Fermax 9637 4+N New Marine Video Amplifier
Fermax 9637 4+N New Marine Video Amplifier
Video amplifier module (flat) of spare parts for inclusion in Marine electronic door entry panels.
Installed in the accesses to the building, they enable communication with homes, door opening, guard unit call, etc. Incorporates colour camera with built-in lighting and pan&tilt regulation system to adjust the camera lens.
Camera Specifications:
- Image Output: 1.1Vp-p/75O
- Resolution: 350TV Lines
- Pixels: PAL 500(H)x582(V) 290Kp / NTSC 510(H)x492(V) 250Kp
- Viewing angle: 90
- Light sensitivity: 0.1 Lux
- Pan & Tilt: 10
Technical Specifications:
- Technology: 4+N
- Power supply: Audio: 12 Vac, Video: 18 Vdc
- Consumption: Standby: 180 mA, Active audio: 480 mA, audio+video: 560 mA (camera consumption: 80mA),Card slot module LED lighting: 35 mA per module
- IPK Panel-437
- Audio capacity home-outdoor panel: 1W
- Audio capacity outdoor panel-home: 0.15W
- Two-way volume control
- Operating temperature (C): -10 to +60
Dimensions:
- 105.2 x 95 x 40 (hwd mm)
| Brand | Fermax |
|---|---|
| Range | Fermax Marine Line |
| Cabling | Fermax 4 + n cabling |
| Accessories & Options | Entry Panel Speaker units (QQ) |
