Fermax 1-Way WAY-FI PLUS Video Kit Panel

Fermax 1572 7 Inch WAY-FI PLUS Kit Monitor

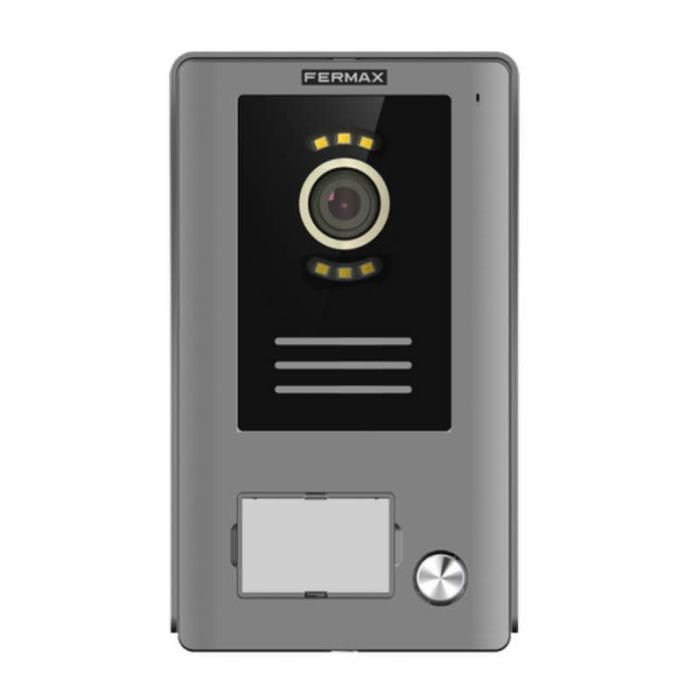

Single-family entrance panel for the WAY-FI PLUS kit.

Features:

• Compact single-family impact-resistant aluminum panel
• Surface mounting. Includes anti-rain visor , necessary for installation
• Management of 2 activations (electric door opener and relay)
• Video camera with high image quality , even at night
• Door opening using QR codes
• Illuminated card holder and button with day/night sensor. Scene LEDs too
• Tamper with alarm on monitors and app

Technical Specifications:

• Mounting: Surface. Rain visor included necessary for assembly
• IP/IK Grade: IP 44/IK 07
• Material finish: Aluminium
• Electric lock release activation: 12 Vdc 250 mA output, terminals S+, S-). Timerable (1-10 s.)
• Potential free relay for activation of 2nd door (garage): Configurable as Normally Open/Closed. Timerable (1-10 s.)
• Hallway exit button connection: Activates the electric lock release or relay, selectable and timed (1-20s). Terminals PL, GND
• Camera: CMOS, HD resolution. Wide angle (H=122¼; V=63¼). White LEDs (6) for camera lighting with light sensor activation
• Card holder and button set: Front removable card holder and call button, both with white LED backlighting. Backlight activation by light sensor
• Possibility of additional panels: one
• Speaker volume adjustment
• Operating temperature (C): -25 to +70
• Maximum consumption of electric door opener: 250 mA during maintenance
• Configuration via DIP-switch: Plate number and activation selection of exit button (electric door opener or garage relay)

Dimensions:

• 164 x 94 x 39 (hwd mm)
