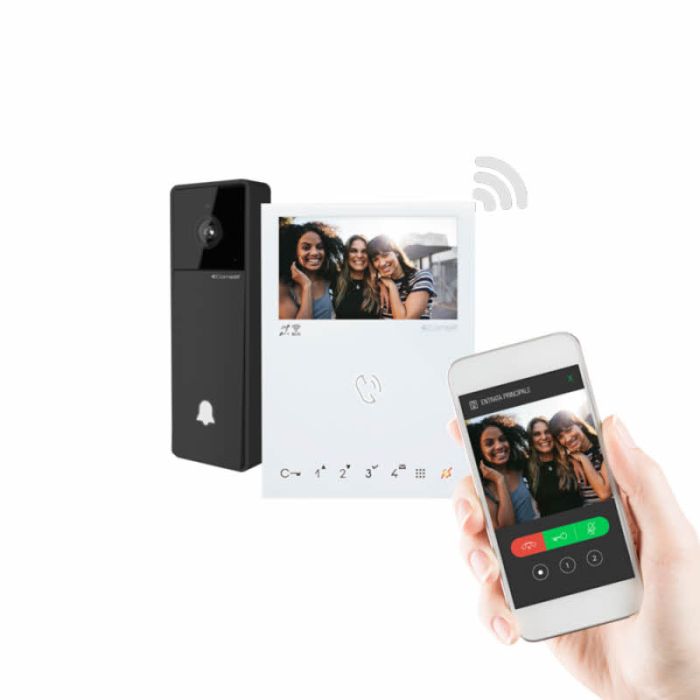

Comelit Visto Kit and Mini VIP Handsfree Wi-Fi Monitor

Comelit Visto Kit and Mini VIP Handsfree Wi-Fi Monitor

The Visto series wall-mounted doorbell unit for ViP IP video entry system. Complete with one mechanical call button, wide-angle colour camera, audio speaker and microphone.

The 6742W is a handsfree colour monitor with 4.3 display for ViP system. It has integral Wi-Fi port and gateway for forwarding video entry phone calls to smartphones and tablets equipped with the Comelit app.

All the main functions and programming operations can be performed from a graphic menu that can be navigated using the function keys. It can be powered by PoE as standard or from ViP Comelit switches and power supply units. It also includes induction loop with T position for users wearing hearing aids and answerphone function.

This kit includes a power supply unit with 110Vac/240Vac input and 48Vdc output. 30W power. DIN bar power supply unit (4 DIN modules).

A floor shunt with one input, one output (10/100 Mb) and 4 shunts (10 MB) is also included in this kit.

Kit Contents:

• 1 x VS8101 Doorbell
• 1 x 6742W Wi-Fi Monitor
• 1 x 1441B PSU
• 1 x 1440 Floor Shunt

Features:

Doorbell

• Colour: Dark Graphite RAL9011
• Material: Plastic
• Wall-mounted
• One Mechanical Push-button
• Backlight colour: White
• Removable terminals
• Door Opener
• 1 x Auxiliary Relay
• Visual indications of system status
• Acoustic signals of system status

Wi-Fi Monitor

• Colour: White RAL9003
• Material: ABS/li>
• Wall-mounted
• Display (): 4.3, 16:9
• Resolution (pixels): 480x272
• OSD Menu
• Induction Loop
• Capacitive Buttons
• Service buttons: Answer, Silent (Privacy), Menu, Messages, Door open
• 8 x Softtouch Keys
• 4 x Programmable buttons for additional functions
• 3 x Inputs
• Loudspeaker & Ringtone Volume and Screen backlight
• Video Memory
• ViP anti-theft function
• Comaptibility with Video Entry Comelit App

Techical Specifications:

Doorbell

• Compatible System: IP
• Camera: Colours
• Sensor type: 1/4 CMOS
• Lens (mm): 1.6
• Angle of view (H x V Degrees): 170 (diagonal)
• Type of power supply: PoE
• Supply voltage: 37÷57 VDC (ViP)
• PoE power supply: Standard IEEE 802.3af, 36÷57VDC, standard PoE
• PoE class: Class 2
• Absorption in stand-by (W): 3.84
• Maximum absorption (W): 6.49
• Number of outputs: 1
• Type of outputs: Relay (C-NO, 1A@30VDC)
• Type of LAN network: Ethernet 10/100 Mbit/s
• IP address assignment: Auto IP, DHCP, Static
• IP protection degree: IP54
• Operating temperature (C): -25 to +55
• Operating humidity (RH max - %): 25 ÷ 75

Wi-Fi Monitor

• Compatible System: IP
• Microphone: 6mm (Ø), Omnidirectional
• Loudspeaker: 36mm (Ø), 8 Ohm, 1W
• Type of power supply: PoE
• PoE power supply: Standard IEEE 802.3af, Comelit PoE (56VDC)
• Absorption in stand-by (W): 2.64
• Maximum absorption (W): 3.52
• Communication ports: RJ45 (Ethernet)
• Type of LAN network: Ethernet 10/100 Mbit/s, IEEE 802.3, IEEE 802.3u (Fast Ethernet)
• Type of Wi-Fi connection: IEEE 802.11 b/g/n, 2.4 Ghz, 13 channels
• IP address assignment: Auto IP, DHCP, Static
• Comelit Cloud: IoT connection and Firmware update
• IP protection degree: IP30
• Operating temperature (C): +5 to +40
• Operating humidity (RH max - %): 25 ÷ 75

Power Supply Unit

• Supply voltage: 110÷240
• 4 x DIN modules
• Operating temperature (C): -10 to +50
• Maximum current absorption (mA): 900
• Maximum power delivered (W): 30

Floor Shunt

• Operating temperature (C): +5 to +40
• Operating humidity (% RH max): 25÷75
• DIN rail mounted
• 4 x DIN modules
• Compatible System: VIP
• Type of connections/ports: RJ45

Dimensions:

• Doorbell: 136 x 47 x 32 (hwd mm)
• Monitor: 115 x 160 x 22 (hwd mm)
• Power Supply Unit: 62 x 90 x 70 (hwd mm)
• Floor Shunt: 89 x 72 x 62 (hwd mm)
