Comelit ULTRA Call Button Module
£128.93
£107.44
SKU
UT9200
- This product is available to order. The lead time is normally 2 – 4 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

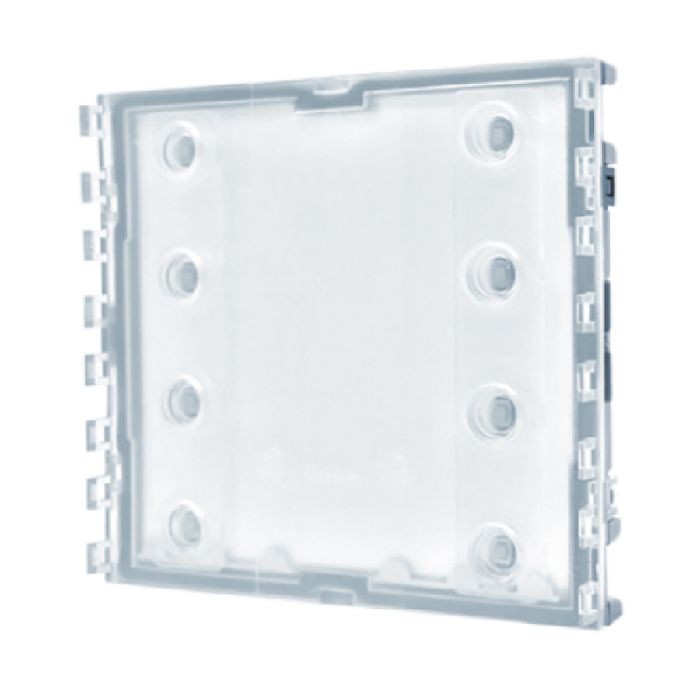

Comelit UT9200 ULTRA Call Button Module for Ultra Entrance Panels
Comelit UT9200 ULTRA Call Button Module for Entrance Panels
Call button module for the Comelit Ultra entrance panel range, compatible with all systems. The UT9200 accommodates up to 8 call buttons and is designed for completion with single buttons (art. UT9211, UT9211M, UT9211FM for 4 calls), double buttons (art. UT9212, UT9212M, UT9212FM for 8 calls) or caps (art. UT9221, UT9221M).
Buttons and nameplates are available in professional-grade plastic with anti-yellowing and anti-dulling treatment or in aluminium. Automatic nameplate backlight switch-off during daytime hours is managed via the twilight sensor on the paired audio or audio/video module.
Key Features
- Capacity for up to 8 mechanical call buttons
- Compatible with all Ultra system types
- White nameplate backlighting with brightness adjustment
- Automatic daytime backlight switch-off via twilight sensor
- Surface or flush mounting with dedicated accessory
- Transparent finish
Technical Specifications
- Supply voltage: 33 VDC
- Standby absorption: 0.4 W
- Maximum absorption: 0.4 W
- Operating temperature: -25 to +55 degrees C
- Operating humidity: 25% - 95% RH
- Button type: Mechanical
- Maximum buttons: 8
- Backlight colour: White
- Mounting: Surface or flush
Dimensions
- 90 x 100 x 35 mm (H x W x D)
| Brand | Comelit |
|---|---|
| Call Buttons | 8 call buttons |
| Modules | Module - 1 row, 1 col. |
| Finish | Aluminium-Silver |
