Comelit SWITCH 24 Button (3 Columns) Front Plate

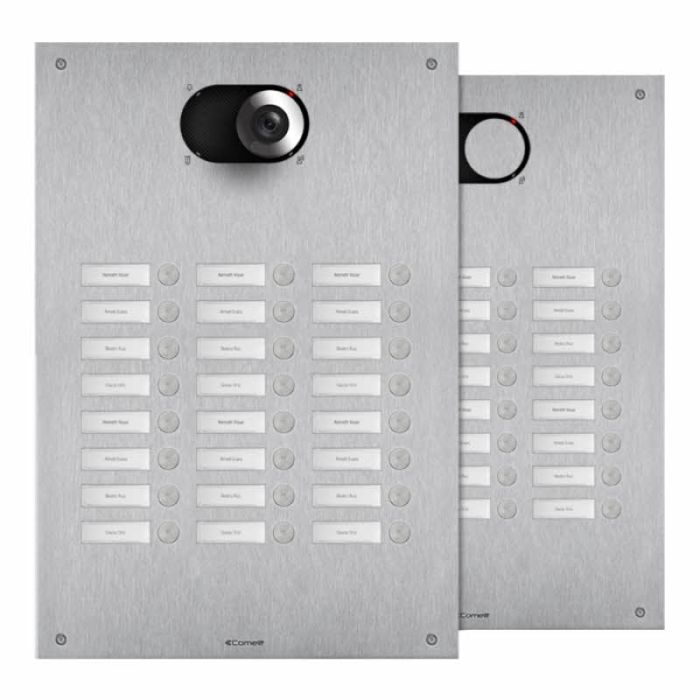

Comelit IX0324 Switch 24-Button Front Plate - 3 Columns

The Comelit IX0324 is a monoblock entrance panel front plate from the Switch range, featuring 24 pre-fitted, pre-wired mechanical push-buttons arranged in 3 columns. Constructed from 2.5 mm thick brushed AISI 316 stainless steel with white LED nameplate backlighting and front-accessible nameplate replacement. The included adapter art. 1250U allows use with either an audio or audio/video module depending on the wiring system applied (Simplebus digital 2-wire or ViP). The audio/video module and flush-mounted box or surface-mounted casing are not supplied and must be ordered separately.

Key Features

• 24 pre-fitted, pre-wired mechanical push-buttons in 3-column layout
• 2.5 mm thick brushed AISI 316 stainless steel construction
• White LED nameplate backlighting with front-accessible replacement
• Echo cancelling audio technology
• Compatible with Simplebus 1, Simplebus 2 and ViP systems via adapter art. 1250U
• Flush-mounted or surface-mounted installation with dedicated accessories
• Compatible audio/video units: 1682, 1682HVC, 4682HD, 1621, 1622, 1622VC, 4680C, 4681

Technical Specifications

• Material: Brushed AISI 316 stainless steel
• Plate thickness: 2.5 mm
• Number of buttons: 24
• Button layout: 3 columns
• Button type: Mechanical push-buttons
• Backlight colour: White LED
• IP rating: IP54
• IK rating: IK08
• Operating temperature: -25 to 55 degrees C
• Operating humidity: 25 to 95% RH
• Environmental class: III
• Adapter included: Art. 1250U
• Flush-mounted box: IX9155 (276.9 x 422.9 x 56 mm)
• Surface-mounted casing: IX9165

Dimensions

• 302.9 x 448.9 x 2.5 mm (W x H x D)
