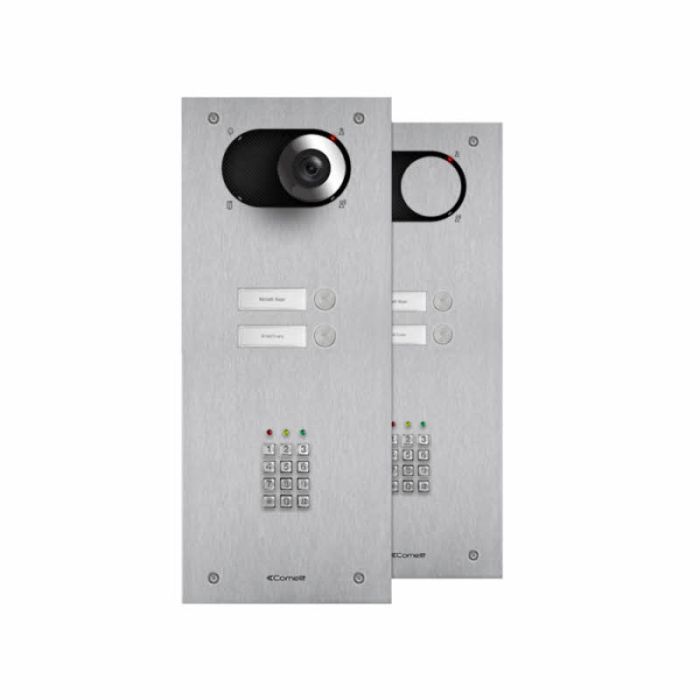

Comelit SWITCH 2 Button Front Plate with Electronic Keypad

Comelit IX0102KP Switch 2-Button Front Plate with Keypad

The Comelit IX0102KP is a monoblock front plate for the Switch entrance panel range with an integrated electronic keypad, manufactured from 2.5 mm thick brushed AISI 316 stainless steel. The keypad provides access control via up to 100 programmable door opener codes and includes 2 auxiliary relays. The supplied adapter art. 1250U allows use with either an audio or audio/video module depending on the wiring system applied (Simplebus digital 2-wire or ViP). Complete with 2 pre-fitted, pre-wired mechanical push-buttons and white LED nameplate backlighting. Nameplates are replaceable from the front. Requires a separate flush-mounted box or surface-mounted casing (not supplied). Compatible audio/video modules include art. 1682, 1682HVC, 4682HD, 1621, 1622, 1622VC, 4680C and 4681.

Key Features

• 2.5 mm thick brushed AISI 316 stainless steel construction
• Integrated electronic keypad with up to 100 door opener codes
• 2 auxiliary relays
• 2 pre-fitted, pre-wired mechanical push-buttons
• White LED nameplate backlighting
• Nameplates replaceable from the front
• Adapter art. 1250U included for audio or audio/video module flexibility
• Compatible with Simplebus 1, Simplebus 2 and ViP systems
• Flush-mounted or surface-mounted installation with dedicated accessories

Technical Specifications

• Material: Brushed AISI 316 stainless steel
• Plate thickness: 2.5 mm
• Number of buttons: 2
• Button type: Mechanical
• Backlight colour: White LED
• Number of auxiliary relays: 2
• Number of door opener codes: 100
• Protection rating: IP54
• Vandal resistance: IK08
• Operating temperature: -25 to +55 C
• Operating humidity: 25 to 95% RH
• Environmental class: III
• Adapter included: Art. 1250U

Dimensions

• 150 x 369.1 x 2.5 mm (W x H x D)
