Comelit Simplebus 2 SWITCH Video Kit with Mini Handsfree

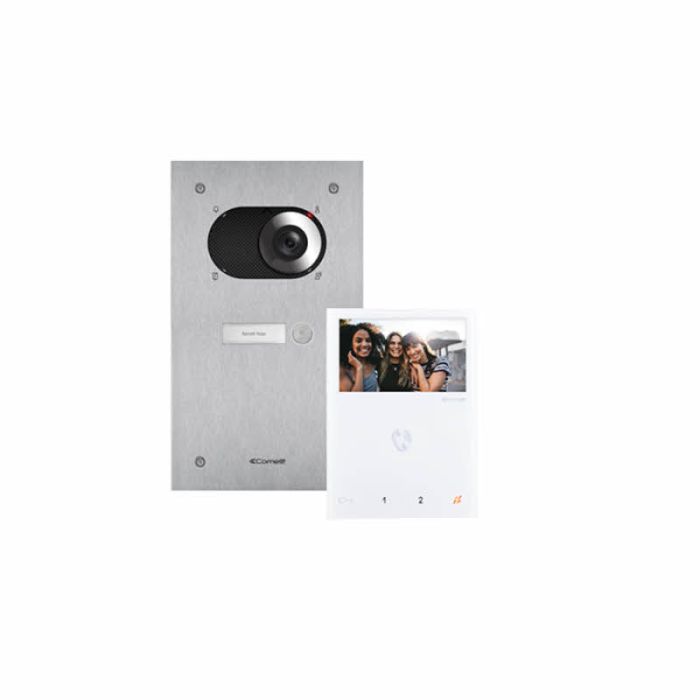

Comelit KVS2001 Simplebus 2 SWITCH Video Kit with Mini Handsfree Monitor

Single-family kit with flush-mounted Switch entrance panel with 1 button and Mini Handsfree monitor. Pre-configured and ready to use. Can be expanded up to 4 internal units. Simplebus2 system.

Front plate for Switch entrance panel in 2.5 mm thick brushed AISI 316 stainless steel. Adapter art. 1250U (supplied), complete with 1 pre-fitted, pre-wired button. White LED nameplate backlighting. Nameplate replacement from the front.

Wall-mounted hands-free monitor with full-duplex audio and 4.3" / 16:9 colour screen. Allows brightness control, plus adjustment of the ringtone volume, which can be customised by choosing one of several different melodies. Equipped as standard with 5 sensitive touch backlit controls for audio activation, door-opening, self-ignition, switchboard call, privacy service and LED signalling for the door status.

2-wire power supply unit required to power the external unit (terminals L1 - L1) and the support column (terminals L2 - L2). Equipped with 1 terminal for line termination art 1216. Input voltage 110-240Vac.

Kit Contents:

• 6721W - Simplebus 2 mini handsfree monitor
• 1214/2C - Video filter for Simplebus 2 system
• 1216 - Simplebus 2 line termination terminal
• 1210 - Simplebus 2 power supply unit
• IX0101 - Pushbutton panel Switch series with 1 button (with audio/video unit)
• IX9150 - Flush-mounting box
