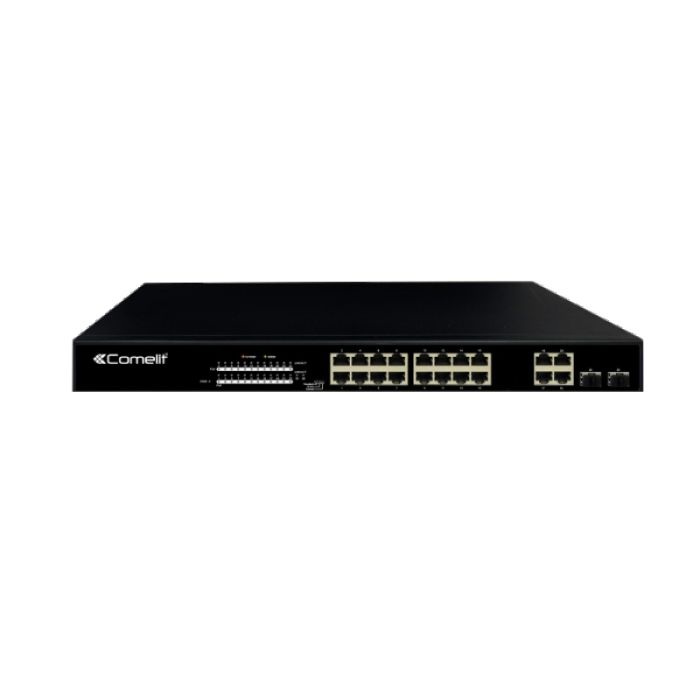

Comelit-PAC IPSWP22N01A Switch - 16 PoE Ports + 4 Uplink + 2 SFP, Giga

Comelit IPSWP22N01A 16-Port PoE Gigabit Switch with SFP Uplinks

The Comelit IPSWP22N01A is a rack-mountable unmanaged PoE Gigabit network switch providing 16 PoE ports, 4 Gigabit uplink ports and 2 SFP fibre slots. Designed for CCTV and Comelit ViP door entry system installations, it delivers a total PoE budget of 250W with up to 32W per port. The store-and-forward switching architecture ensures reliable data delivery across all 22 ports, with VLAN and CCTV modes selectable via DIP switch for simplified network segmentation. Long-range PoE mode extends transmission distances up to 250 m using CAT5e or CAT6 cabling. Compatible with the Comelit ViP system with ECN 001.

Key Features

• 16 Gigabit PoE ports (IEEE 802.3af/at) with 250W total budget
• 4 Gigabit RJ45 uplink ports plus 2 x 1000 Mbps SFP fibre slots
• Long-range PoE mode up to 250 m via DIP switch
• VLAN and CCTV mode for port isolation
• 40 Gbps switching capacity
• Jumbo frame 9216 byte support
• Rack-mountable with fixing brackets supplied
• NDAA compliant
• Compatible with Comelit ViP system

Technical Specifications

• LAN ports: 16 x 10/100/1000 Mbps PoE + 2 x 10/100/1000 Mbps Combo + 2 x 10/100/1000 Mbps RJ45 + 2 x 1000 Mbps SFP
• PoE standard: IEEE 802.3af/at
• PoE voltage: 55 VDC, max 32W per port
• Total PoE budget: 250W
• Switching capacity: 40 Gbps
• Forwarding rate: 29.8 Mpps
• MAC address table: 8K, auto-learning, auto-aging
• Transfer method: Store and forward
• Max PoE transmission distance: Up to 250 m (long-range mode)
• Power supply: 100-240 VAC, 50/60 Hz
• Max absorption: 280W
• Fans: 2
• Surge protection: Differential mode +/-4KV, Common mode +/-6KV
• MTBF: greater than 50,000 hours
• Operating temperature: 0 to 40 degrees C
• Operating humidity: 25 to 90% RH
• Finish: Metal, black

Dimensions

• 440 x 207 x 44 mm (W x D x H)
• Weight: less than 5 kg
