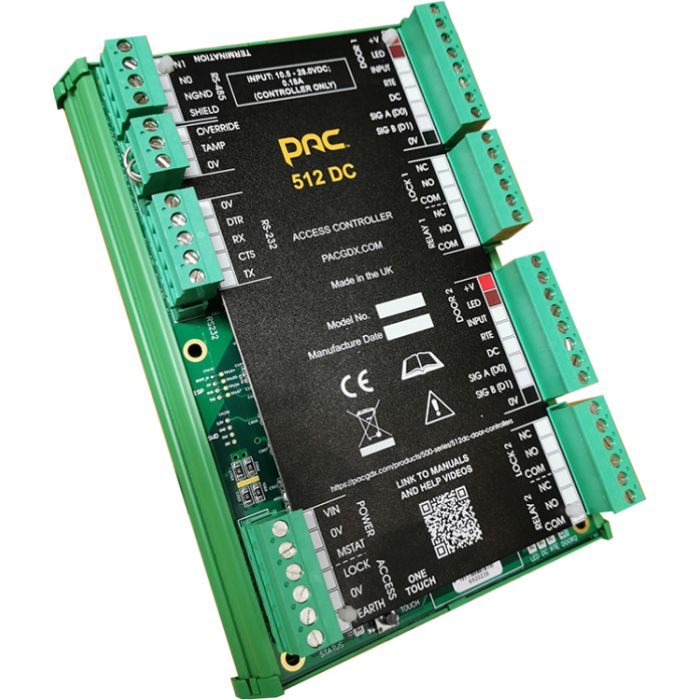

Comelit-PAC Unboxed DIN Mount 512 DC Controller

Comelit-PAC 909030055 512 Controller - DC, DIN Mount

This is an unboxed 512 DC access controller complete with DIN Mount for fitting in to PAC DIN Mount cases (10031 and 10032)

This is an intelligent two-door access controller. It supports all PAC access control and door functions either singular or part of a larger PAC system.

This controller supports large-scale access control systems through connecting access controllers together. It connects to door locks and readers to support door unlocking and alarming. The controllers also communicates events to the Access Central Management software.

Two doors with up to four access control devices as per the following options:

• An access control reader per door
• An access control reader and Push To Exit (PTE) device per door
• Two access control readers per door (read-in and read-out)

Features:

• Manages Access through Two Doors
• Read In/Out when using PAC and PAC64 output readers
• Up to 20,000 Keyholder Database - based on 1 credential record per Keyholder
• 3Amp Thermal Fuse protection to Lock Relays
• Local Anti-passback
• Built in RS232 and RS485 for communication to PAC Access Central or EasiNet Residential software

Technical Specifications:

• Number of ID Devices supported: 20,000
• Supported Access Control: PAC, PAC64 and Wiegand
• Configuration: via PC with PAC Access Central or Easinet software
• Operating temperature: 0C to +35C
• Operating Humidity: 10% to 85% Relative Humidity
• Recommended Cabling: 0.22mm 8 core alarm cable
• Power input: 10.5 - 28 V DC / 50/60 Hz @ 350mA
• Power outputs:2 x 5Amp @ 30V DC

Dimensions:

• 65 x 181 x 125 (mm hwd)
