Comelit-PAC Boxed 511 DCi Access Controller, 3A Power Supply Unit

Comelit-PAC 909030511 Boxed 511 DCi Access Controller, 3A Power Supply Unit

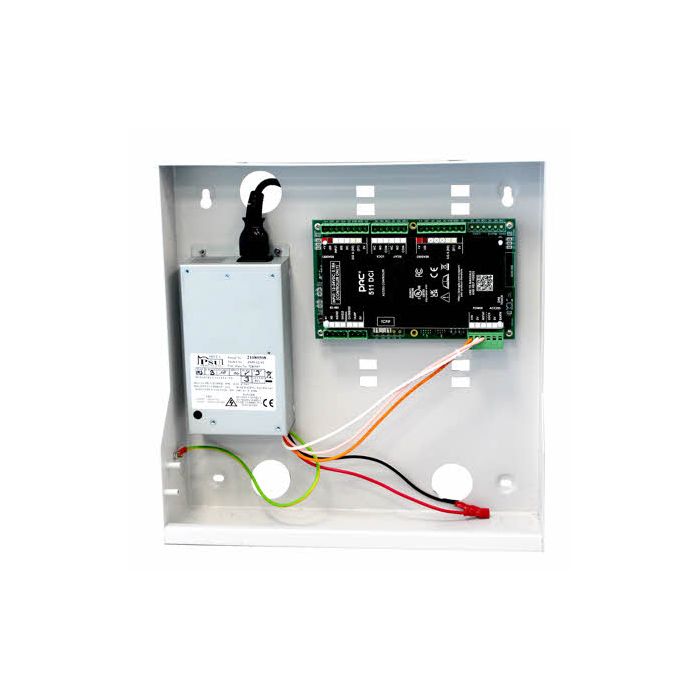

Boxed with pre-wired 3Amp PSU in a metal cabinet with lock and tamper switch for ease of install.

Secure, Intelligent Access Control for One Door

The PAC 511 DCi is an intelligent IP access controller for securing and managing a single door.This controller is purpose-built to manage access through a single door, supporting up to two access control devices, including PAC or Wiegand readers and Push-to-Exit (PTE) devices. Whether configured for read-in only or read-in/read-out scenarios, it ensures flexible control of entry points while maintaining high security.

Integrated Intelligence with Offline Capabilities

While it operates most efficiently when networked with PAC's access management software platforms (PAC Access Central or Easinet Residential), the 511 DCi also contains onboard processing power and local databases.

It relies on management software for many additional features but has in-built databases and processing ability to execute local access control and features associated with door management and lift control.It can store and manage up to 20,000 keyholder records and access events, and continue operating key door and lift control functions even when offline.

Number of Doors Supported:

One door with up to two access control devices as per the following options:

• An access control reader per door
• An access control reader and Push To Exit (PTE) device per door
• Two access control readers per door (read-in and read-out)

Features:

• Manages access through 1 door with a maximum of 2 readers (PAC or Wiegand) for full read-in and read-out capability
• Controls door lock via Fail Safe and Fail Secure modes
• Up to 20,000 keyholder records in its onboard database
• Supports ongoing access control and lift control functions if communication to the management platform is lost
• One-Touch test mode
• Local anti-passback for accurate tracking of personnel

Technical Specifications:

• Number of ID Devices supported: 20,000
• Supported Access Control: PAC, Key PAC, PAC Ops Lite, PAC Ops, and any card format supported by Wiegand
• Event storage: 20,000
• Configuration: via PC with PAC Access Central or Easinet Residential software
• Distance to Input Devices: 70m (controller), 500m (locally powered)
• Access Controller Input Devices: PAC readers, PTE devices, Door contacts, Alarm inputs
• Input Connection Features: tamper alarm, override, TCP/IP (RJ-45), RS-485, and input per door channel
• Output Connection Features: 1 x 5Amp ancillary relays and 3 x inputs for monitoring
• Operating temperature (C): 0 to +35
• Operating Humidity (%): 10 to 85 Relative Humidity
• Recommended Cabling: 0.22mm 8 core alarm cable
• System Power: 12Ñ24 V DC
• Power input: 220-240V AC, 50Hz

Dimensions:

• 335 x 335 x 90 (mm hwd)
