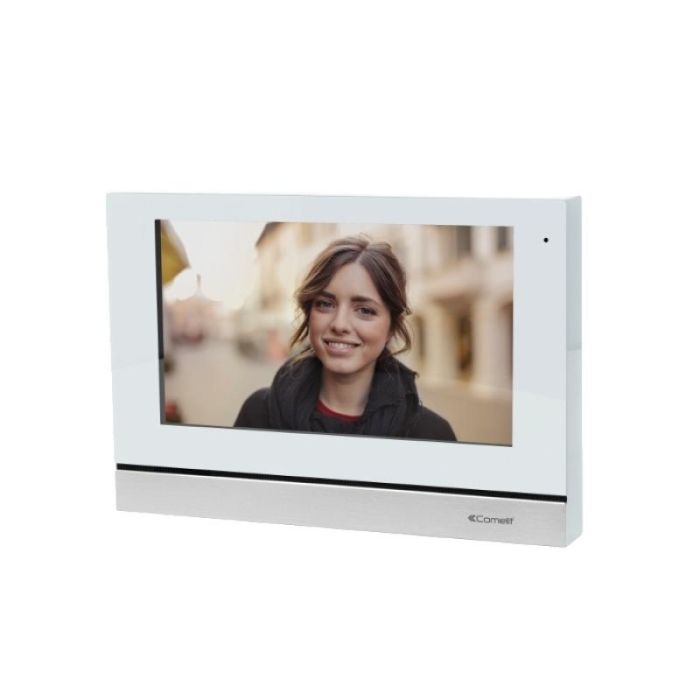

Comelit 6804W 7 Tuscany Monitor - White. VIP

Comelit 6804W Tuscany 7 Inch Touch Screen Video Monitor, White, VIP System

Introducing the Comelit 6804W Tuscany monitor, an elegant and functional internal video station designed for the advanced Comelit VIP (IP-based) door entry system. Featuring a generous 7-inch touch screen display set within a refined white frame, the Tuscany monitor combines sophisticated Italian design with the power and flexibility of network-based intercom technology, making it an excellent choice for modern residential and commercial properties.

The large 7-inch colour touch screen provides users with a clear view of visitors calling from the external VIP door station, allowing for easy visual identification. The intuitive touch interface enables straightforward control over essential functions such as answering calls, initiating conversations, activating door/gate releases, making intercom calls to other monitors within the system, and enabling privacy mode. Its hands-free operation enhances convenience for everyday use.

As part of the VIP system, the 6804W connects via the building's Ethernet network, offering significant advantages in terms of scalability, integration possibilities (e.g., with CCTV or home automation systems via gateways), and remote management. When configured with the appropriate gateway and internet connection, users can potentially manage calls and door release via the Comelit mobile app. Powered typically via PoE (Power over Ethernet) or an optional local PSU, installation is simplified. The Tuscany monitor brings a touch of class and advanced IP functionality to any VIP installation.

Features

• Elegant 7-inch colour touch screen display (typically 800x480 resolution)
• Hands-free full-duplex audio communication
• Intuitive graphical user interface
• Designed for Comelit VIP (IP based) digital system
• Core functions: Call answer, door release, intercom calls, privacy mode, camera preview
• Potential VIP advanced functions: Video recording, call forwarding via app (Comelit VIP Remote), system integration (subject to setup)
• Network connectivity via Ethernet port (RJ45)
• Supports Power over Ethernet (PoE IEEE 802.3af) or local 12V DC supply
• Surface mount installation
• Stylish white finish (Tuscany design range)

Technical Specifications

• Manufacturer: Comelit
• System: VIP (IP Network based)
• Display: 7Î TFT LCD Touch Screen
• Resolution: 800 x 480 pixels (typical)
• Audio: Hands-free duplex
• Network Interface: Ethernet 10/100 Mbps (RJ45)
• Power: PoE (IEEE 802.3af) or 12 V DC
• Mounting: Surface Mount (requires suitable backplate)
• Operating Temperature: 5¡C to 40¡C
• Colour: White
