Comelit Bracket for Bravo and Genius Monitor, Simplebus 2

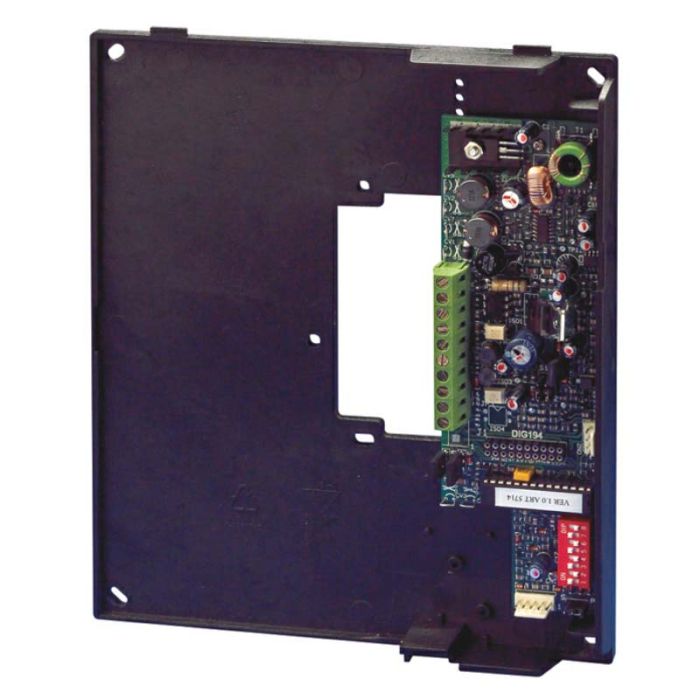

Comelit 5714C Bracket for Bravo and Genius Monitor, Simplebus 2

Bracket for digital Simplebus 2 system needed to complete the Bravo and genius handset version monitor. The bracket is complete with conversation privacy.

The standard pushbuttons on the monitor take on the function of door opener pushbutton, porter switchboard call (alternatively, this can be set as a control for actuator art. 1256) or free pushbutton (C/N.O.) and internal lighting pushbutton or video request.

It manages the floor door call and call repetition as standard. Complete with DIP SWITCH with 8 positions for programming the user code. Addition of the pushbutton card art. 5733 allows availability of 4 supplementary pushbuttons. From the RI007 it is compatible with all Simplebus 2 functions and products.

Allows transmission of alarm signals to the porter switchboard, separate call to main switchboard, secondary switchboard and guardian doorentry phone. Allows direct intercommunication between users without the aid of an interface or porter switchboard and the use of several actuators relays, no dedicated programmers for pushbuttons programming. Provided with branch terminal 1214/2C.

Features:

• Self Activation
• Floor door call function
• Switchboard call function
• Privacy conversation function
• Privacy function
• Customisable ringtone
• Automatic gain control (AGC)
• Alarm function
• Actuator control function
• Intercom function

Technical Specifications:

• Maximum absorption (W): 160
• Operating temperature (C): -5 to +55
• Maximum current absorption (mA): 160
• Compatibility: Simplebus 2 audio/video system and Audio/video system

Dimensions:

• 197 x 169 (hw mm)
