Comelit Quadra 2-Wire Video Entry Panel with Mechanical Buttons

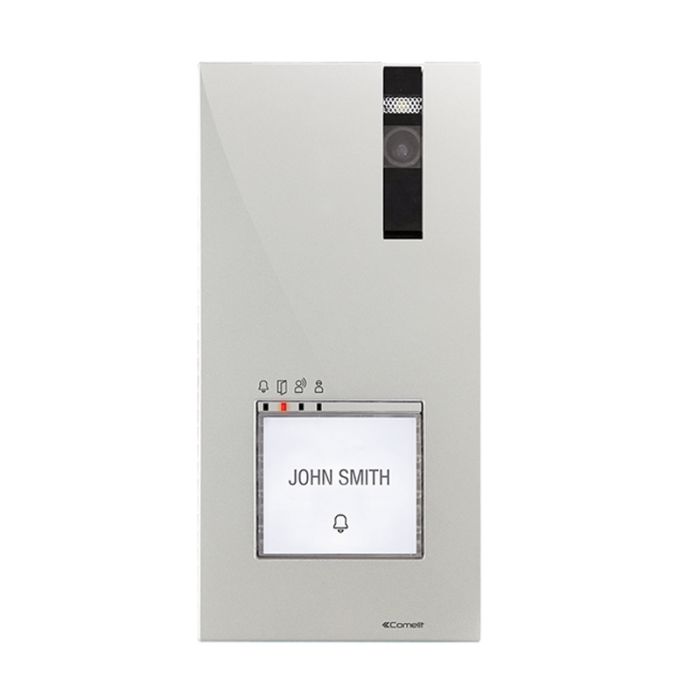

Comelit 4893M Quadra 2-Wire Video Entry Panel with Buttons

The Comelit 4893M is a Quadra series surface-mounted external video entry unit for Simplebus 2-wire door entry systems. It features a die-cast aluminium faceplate, a wide-angle colour camera with a single white LED for nighttime illumination, and mechanical call buttons configurable from 1 to 4 users via DIP switches.

Indicator LEDs signal call sent, lock-release activated, audio activated and system busy status. Speaker volume and audio balance are adjustable. The unit is bus line powered, requiring no separate power supply at the panel.

Key Features

• Die-cast aluminium faceplate
• Wide-angle colour video camera (85 x 72 degrees)
• 1/4 inch CMOS sensor with 0.1 lux sensitivity
• 1 to 4 mechanical call buttons configurable via DIP switch
• White LED nighttime illumination
• 4 indicator LEDs for system status
• Relay output: C.NC.NO, 4A max AC-DC 12V/24V
• Request to exit (RTE) and door open indication inputs
• Bus line powered (33 VDC)
• Surface-mounted installation

Dimensions

• 95 x 195 x 28 mm (W x H x D)

Technical Specifications

• System: Simplebus 2-wire
• Protection class: IP54
• Impact resistance: IK08
• Voltage: 33 VDC (bus powered)
• Relay activation time: 2 seconds (default)
• Lock coil voltage: 12 VAC/VDC
• Lock coil max impedance: 18 ohm
• Local door opener max distance: 20 m
• DIP switch configuration: 8-position (S1, S2)
• User codes: Up to 240 via 8-position DIP switch
