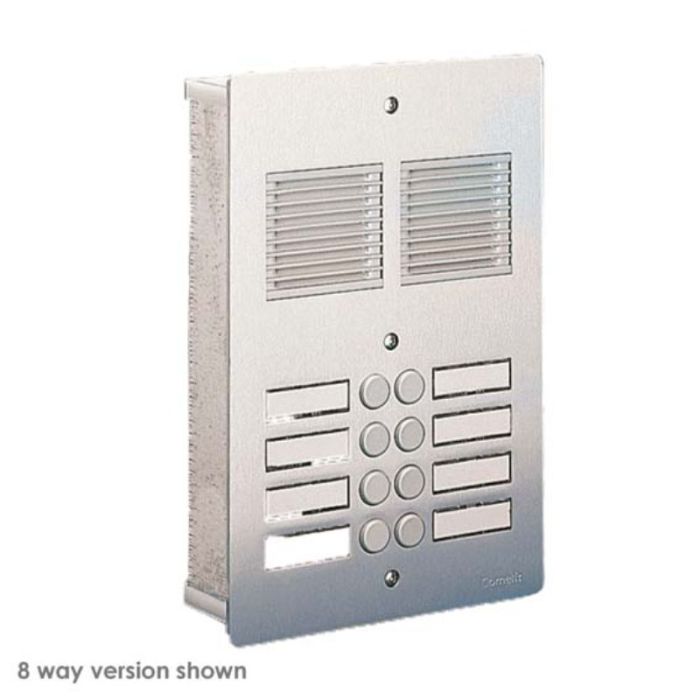

Comelit 12 way Flush-mounted aluminium entrance panel

Comelit 12 way Flush-mounted aluminium entrance panel

Features:

• Entrance panels made of 4 mm thick anodized aluminium, 16 mm diameter aluminium push-buttons, extruded aluminium impact-proof grill, galvanized sheet flush-mounting box.
• Self-adjusting and independent button assembly.
• All the entrance panels are fitted with bulb holder (without bulb) for ¯ 6.3 x 39 mm festoon bulbs.
• The flush-mounting 'N' entrance panels can be converted into surface-mounting or gate-mounting types using P or S type housings.
• To be completed with audio speaker unit Art. 1102 for systems with traditional cabling or with audio speaker unit Art. 1103 for systems with simplified cabling.
• In this system the entrance panel is also to be complete with a diode module Art. 1134 for each push-button.
• Push-buttons: 12Rows of push-buttons: 2 Front dimensions: 180x316 mm, Box dimensions: 158x305x55 mm.
