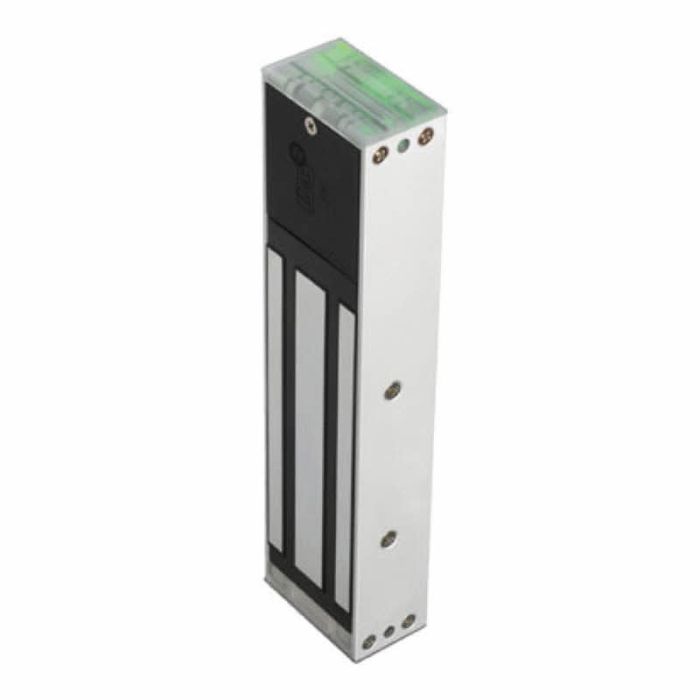

CDVI V3SRB (S300MB) | Surface 300kg Maglock, Monitored With Buzzer

CDVI V3SRB (S300MB) | Surface 300kg Maglock, Monitored With Buzzer

The V3 Series are surface maglocks with a holding force of up to 300kg. A door positionning monitor (DPM300) is available for a more infallible system.

It is part of an extansive range of electromagnetic locks manufactured by CDVI, offering high quality and high performance locking with exceptional features to enhance your installation.

The magnets are delivered with security catch ropes to prevent the magnetic lock from falling, ensuring a sade mounting without risk of injury.

Features:

• Surface mount
• 12 or 24Vdc operation
• Monitored
• Innovative visual and audible indication
• Z&L bracket available
• Security catch ropes
• No moving parts
• 300kg holding force

Technical Specifications:

• Operating voltage: 12V to 24Vdc
• Current: @12Vdc = 550mA, @24Vdc = 225mA

Dimensions:

• Dimensions: 248 x 45 x 26mm
