CDVI Toilet Lock Control Kit for Door Automation (Surface)

CDVI DW-TLC-KIT Toilet Lock Control Kit for Door Automation

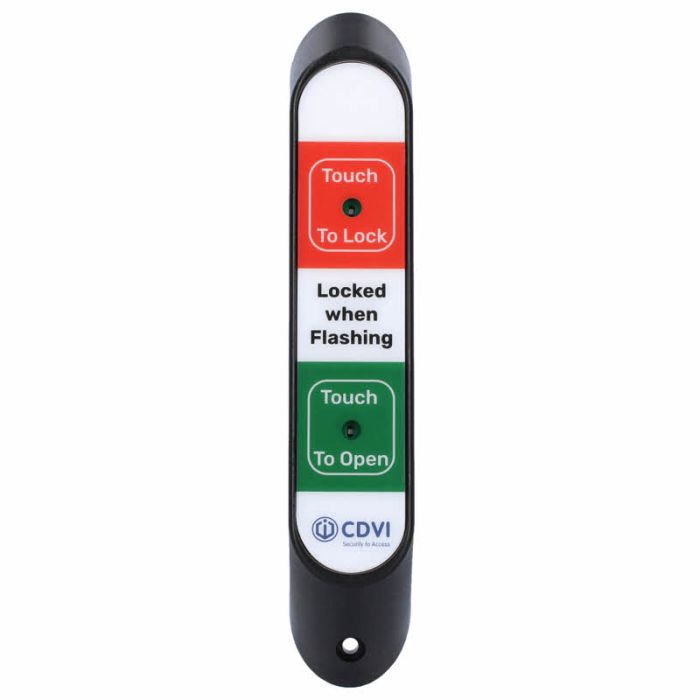

The DW-TLC is operated by two touch-sensitive sensors. It controls entry by locking and unlocking the door at the appropriate times, interfacing with both the automatic door operator and the locking device. The DW-TLC integrates seamlessly with DIGIWAY door operators, making it a touchless automated door system.

• Entry: Touch the external sensor. The door opener activates to provide access.
• Lock: Touch the internal sensor to lock the door. To confirm the door is locked, the LEDs on both sensors flash, showing the toilet is engaged and inhibiting the entry sensor.
• Exit: Touch the internal sensor again. The indicator stops flashing. The door unlocks and the door opener activates. The entry sensor stops flashing and can provide access again.

This Kit Includes:

• DW-TLC Door lock control
• PSMB123 Power supply
• EM201 Emergency exit device
• C3S11 Maglock and 300-ZL Bracket

Features:

• Accessible toilet locking system for door automation
• 4 DIP switches for custom settings
• Integrated lock sensor and included door contact
• LED indicators for door locking status

Technical Specifications:

• Number of Relays: 1
• Mounting: Surface
• Voltage (V): 7-30V DC
• Max Power Consumption (mA): 27mA
• IP Rating: IP65
• Surface Material: Glass filled nylon

Dimensions:

• 225 x 40 x 49 (hwd mm)
