CDVi T2GE12D Weatherproof IP65 Electric Strike Right-Handed 12Vac/dc

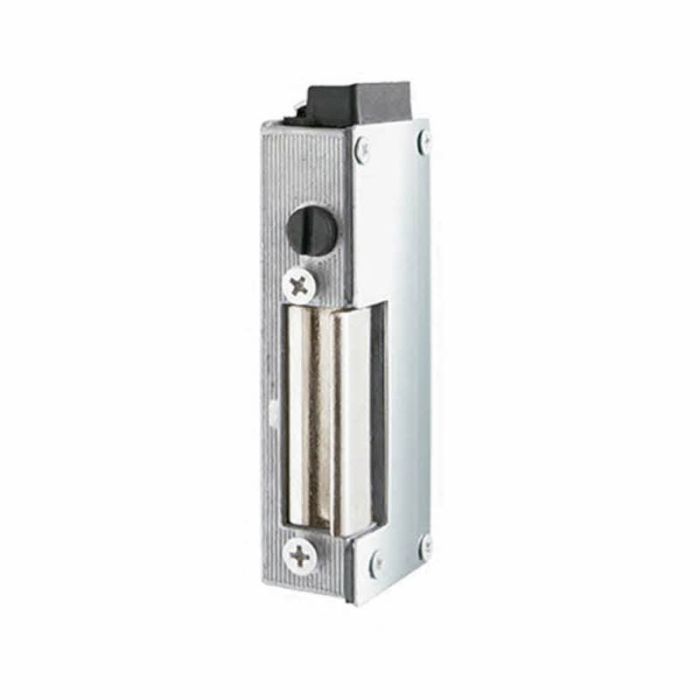

CDVi T2GE12D Weatherproof Fail Secure Electric Strike, Right-Handed

The CDVi T2GE12D is a weatherproof and dustproof fail secure electric strike designed for external installations and sterile environments where IP65 protection is essential. The right-handed variant features a protected gasket seal delivering full dust and water ingress resistance, making it ideal for external pedestrian gates and outdoor access points.

With a holding force of 450kg measured at the jaw, the T2GE12D provides robust security. A manual hold-open function allows the strike to be latched open when required. The built-in MOV (metal oxide varistor) protects connected electronic control devices from damaging electrical spikes. The 306 stainless steel faceplate ensures long-term durability in exposed conditions. Not suited for salt environments.

Key Features

• Fail secure operation
• IP65 rated - weatherproof and dustproof
• 450kg holding force
• Right-handed configuration
• Gasket sealed for external use
• Manual hold-open function
• Built-in MOV for spike protection
• 306 stainless steel faceplate
• Mortice mounting
• Tested to 300,000 operations
• 10 year warranty

Technical Specifications

• Lock mode: Fail secure
• Holding force: 450kg
• Voltage: 12Vac/dc
• Current draw (AC): 370mA at 12Vac
• Current draw (DC): 580mA at 12Vdc
• Jaw type: Fixed
• Handed: Right
• Mounting: Mortice
• Faceplate material: 306 stainless steel
• Protection class: IP65
• Operating temperature: -15C to 40C
• Cycles tested: 300,000 operations
• Weight: 0.4 kg
• Certifications: CE, RoHS
• Warranty: 10 years

Dimensions

• Strike: 100 x 21.5 x 37 mm
• Faceplate: 250 x 25 x 3 mm
