CDVi STAR-PB Narrow Mullion 125kHz Proximity Reader, Black
£140.21
£116.84
SKU
STARPB
- This product is available to order. The lead time is normally 14 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product
CDVi STARPB narrow mullion style 125kHz proximity card reader in black. Wiegand 26, 30 or 44 bit output with multicoloured LED status indication. IP53 rated polycarbo

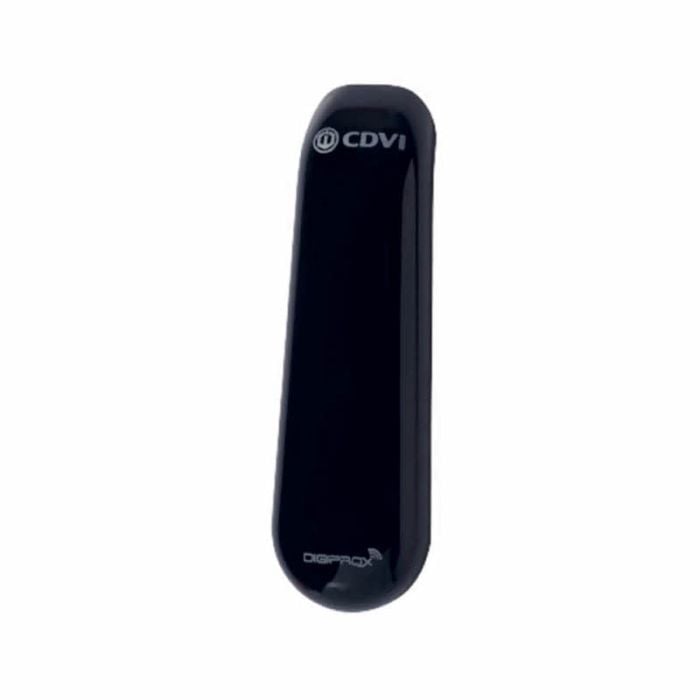

CDVi STARPB Narrow Mullion 125kHz Proximity Reader in Black
The CDVi STARPB is a narrow mullion style 125kHz proximity card reader finished in black, from the Digiprox STAR range. Designed for mounting on narrow door frames, it provides multicoloured LED door status indication and is part of the wider reader family alongside the NANO, SOLAR and MOONAR models. The polycarbonate housing is straightforward to install and well suited to space-constrained frames.
Key Features
- Narrow mullion style 125kHz proximity reader in black
- Wiegand 26, 30 or 44 bit output
- Multicoloured LED indication: Blue (Standby), Green (Access Granted), Red (Access Denied)
- Audible and visual feedback
- Low power consumption - 100mA max at 12Vdc
- Polycarbonate construction
- IP53 rated
- 10 year warranty
Technical Specifications
- Technology: 125kHz proximity
- Output: Wiegand 26, 30 or 44 bit
- Operating voltage: 12Vdc
- Maximum current draw: 100mA
- Material: Polycarbonate
- Finish: Black
- Protection class: IP53
- Operating temperature: -25 degrees C to +70 degrees C
- Certifications: CE, RoHS
Dimensions
- 130 mm (H) x 41 mm (W) x 28 mm (D)
| Brand | CDVi |
|---|---|
| Reader Function | Access Control |
| Reader Type | Proximity (requires controller) |
