CDVi SPR1024 Fail Safe Monitored Symmetrical Strike 12/24Vac/dc

CDVi SPR1024 Fail Safe Monitored Symmetrical Strike 12/24Vac/dc

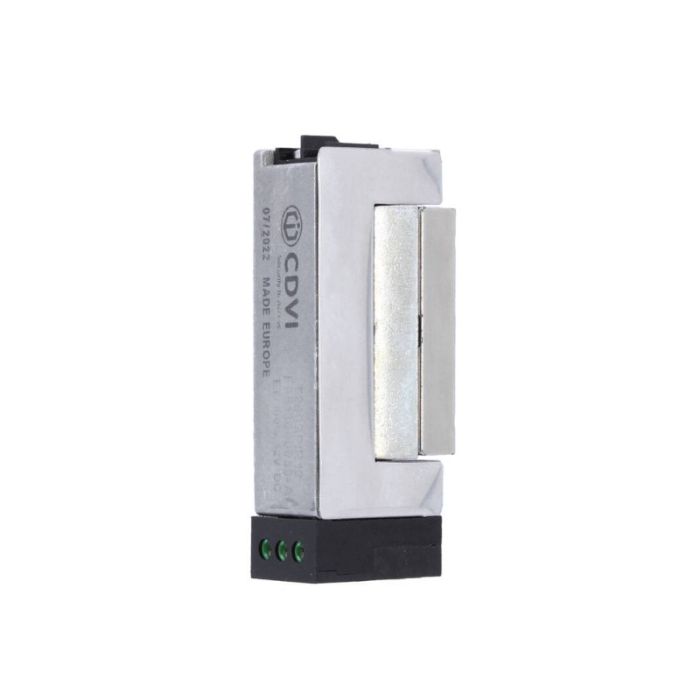

The CDVi SPR1024 is a compact symmetrical fail safe electric strike with integrated NO/NC door position monitoring. Its symmetrical Zamak body is fully reversible for left or right-handed doors, and at just 78mm tall it fits the vast majority of door configurations including UPVC doors and multipoint locking systems.

Rated for continuous current at 12/24Vac/dc with a 3250N holding force. The 4mm adjustable radial jaw allows precise alignment. Built-in MOV and integrated diode protect connected electronics from back EMF and electrical spikes. Supplied with TG stainless steel reversible faceplate as standard.

Key Features

• Fail safe symmetrical electric strike
• NO/NC door position monitoring contact
• Reversible non-handed body
• 4mm adjustable radial jaw
• Built-in MOV and integrated back EMF protection diode
• Continuous current rated
• Supplied with TG stainless steel faceplate
• Tested to 300,000 cycles
• One of the narrowest strikes available at 78mm height

Dimensions

• Strike body: 78 x 28.6 x 20.5 mm
• Faceplate (TG): 158 x 25 x 3 mm

Technical Specifications

• Lock mode: Fail safe
• Voltage: 12/24Vac/dc
• Current draw: 200mA at 12Vdc / 100mA at 24Vdc
• Holding force: 3250N
• Material: Zamak body, stainless steel faceplate
• Mounting: Flush
• Handed: Reversible
• Jaw type: Adjustable (4mm)
• Monitoring: NO/NC position contact
• Continuous current: Yes
• Cycles tested: 300,000
• Impact rating: IK10
• Operating temperature: -20 degrees C to 50 degrees C
• Weight: 200g
• Back EMF protection: Integrated diode
• MOV protection: Built-in
• Certifications: CE, RoHS, DEEE
• Warranty: 5 years
