CDVi NANO-PW White Compact 125kHz Proximity Reader
£96.86
£80.72
SKU
NANOPW
- This product is available to order. The lead time is normally 14 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product
CDVi NANOPW white compact 125kHz proximity card reader from the Digiprox range. Wiegand 26, 30 or 44 bit output with multicoloured LED status indication. Polycarbonat

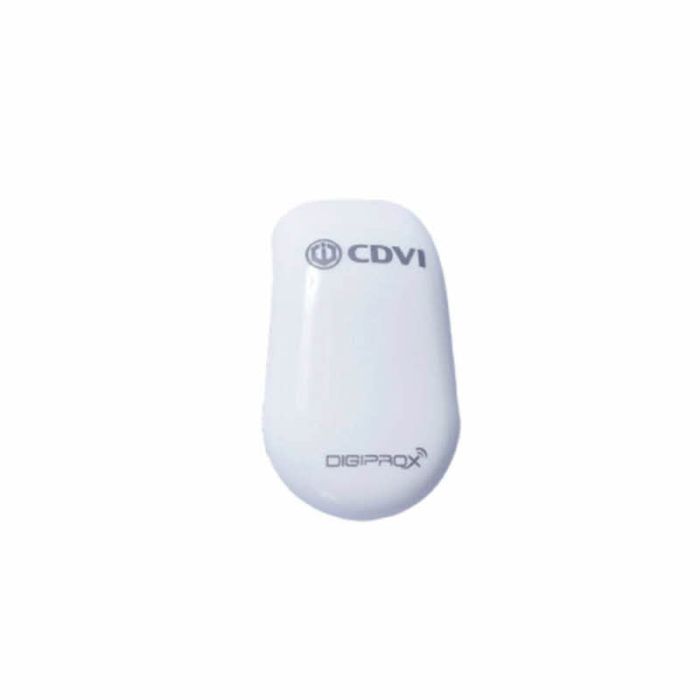

CDVi NANOPW White Compact 125kHz Proximity Card Reader
The CDVi NANOPW is a mini compact proximity card reader from the Digiprox NANO range, finished in white. Designed for access control installations requiring a low-profile reader with multicoloured LED door status indication, it is part of the wider reader family alongside the STAR, SOLAR and MOONAR models. The polycarbonate housing is easy to mount and suits a broad range of environments.
Key Features
- Compact 125kHz proximity card reader in white
- Wiegand 26, 30 or 44 bit output
- Multicoloured LED indication: Blue (Standby), Green (Access Granted), Red (Access Denied)
- Audible and visual feedback
- Low power consumption - 100mA max at 12Vdc
- Polycarbonate construction
- IP53 rated
- 10 year warranty
Technical Specifications
- Technology: 125kHz proximity
- Output: Wiegand 26, 30 or 44 bit
- Operating voltage: 12Vdc
- Maximum current draw: 100mA
- Material: Polycarbonate
- Finish: White
- Protection class: IP53
- Operating temperature: -25 degrees C to +70 degrees C
- Certifications: CE, RoHS, DEEE
Dimensions
- 43 mm (W) x 70 mm (H) x 23 mm (D)
| Brand | CDVi |
|---|---|
| Reader Function | Access Control |
| Reader Type | Proximity (requires controller) |
| Connection Technology | Proximity - 125 KHz |
