CDVI 500kg External Surface Monitored Magnetic Lock
£223.87
£186.56
In stock
SKU
ES500
Free Delivery on this product

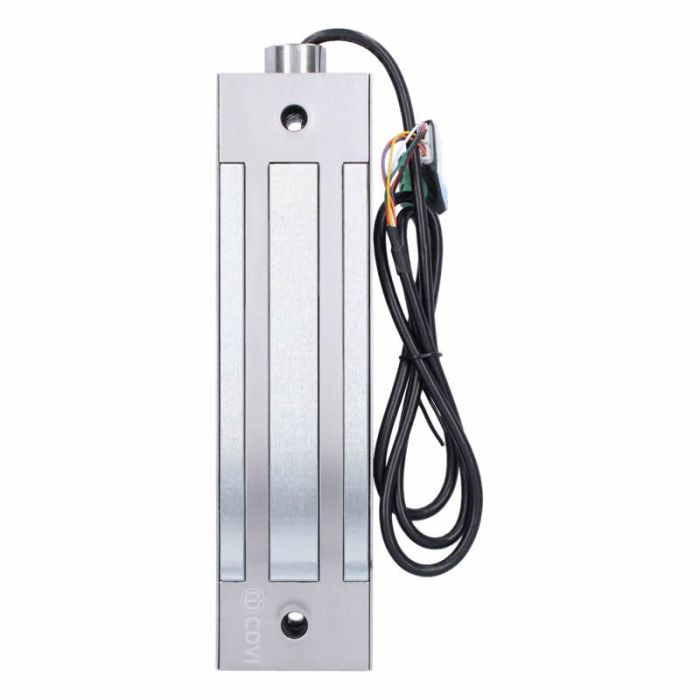

CDVI I500SR 500kg External Surface Monitored Magnetic Lock
CDVI I500SR 500kg External Surface Monitored Magnetic Lock
The I500SR is a monitored surface maglock with a holding force of up to 500kg. Cased in high grade stainless steel, with a unique cover plate, this magnet is supplied with a full fixing kit.
Features:
- 500kg holding force
- Monitored surface mount maglock
- stainless steel construction
- For use in harsh environments
- 12-24Vdc
- Female M20 cable gland outlet
Technical Specifications:
- Number of Relays: 1
- Fail Safe
- Mounting: Surface
- Operating Temperature (C): -40 to +60
- Voltage (V): 12-24V DC
- Max Power Consumption (mA): 480mA
- IP Rating: IP68
- IK Rating:IK10
- Surface Material: Stainless steel
Dimensions:
- Magnet: 230 x 61 x 40 (hwd mm)
- Armature Plate: 185 x 60 x 12 (hwd mm)
| Brand | CDVi |
|---|---|
| Fitting | Surface Mount |
| Strike Operation | Fail Open (Failsafe) |
| Voltage | 24.0 Volt DC |
| Type of Device | Magnetic lock (std -1200 kg ext) |
| Finish | Stainless steel |
