CDVi DX200I Fail Safe Monitored Solenoid Bolt, 12-24Vdc

CDVi DX200I Fail Safe Monitored Solenoid Bolt Lock

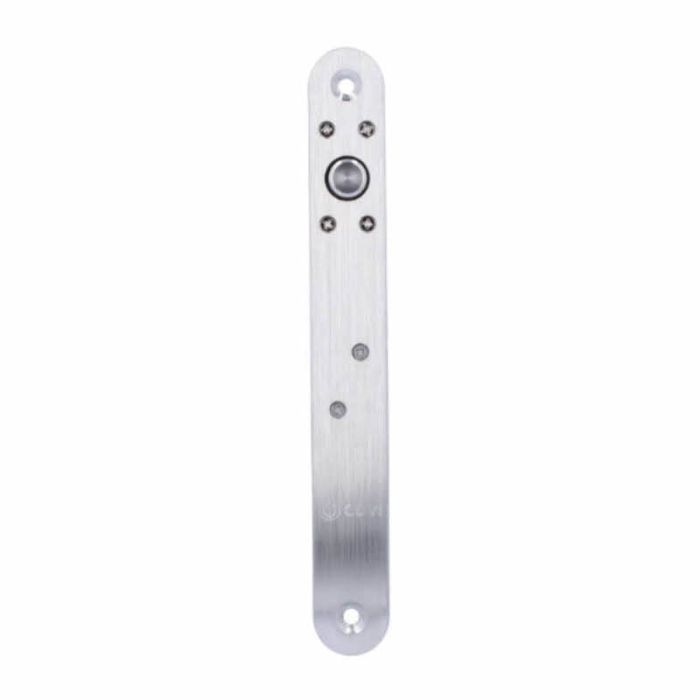

The CDVi DX200I is a fail safe electro-mechanical solenoid bolt designed for secure door locking with full door and bolt status monitoring. It features a self-locking saw-proof roller bolt and a stainless steel faceplate, with the keeper plate manufactured to the same dimensions for a symmetrical parallel installation.

The DX200I operates on free voltage (12-24Vdc) with automatic voltage selection, removing the need for manual configuration. A built-in retry circuit activates if the door is not correctly aligned when the bolt attempts to throw, and an adjustable relock timer (3 to 30 seconds) provides flexibility for different door applications. Vertical mounting is recommended for optimal performance.

Door and lock status monitoring outputs provide full real-time feedback on the state of the door and bolt position, making the DX200I suitable for integration with access control systems requiring monitored locking.

Key Features

• Fail safe solenoid bolt with automatic 12/24Vdc voltage selection
• Saw-proof rotating roller bolt
• Door and lock status monitoring outputs
• Adjustable relock timer: 3 to 30 seconds
• Built-in retry circuit for misaligned doors
• Stainless steel faceplate and keeper plate
• Lock and faceplate same dimensions for parallel installations
• Vertical mounting recommended

Technical Specifications

• Lock mode: Fail safe
• Voltage: 12-24Vdc (free voltage, auto-select)
• Working current: 250mA at 12Vdc / 125mA at 24Vdc
• Inrush current: 1.0A at 12Vdc / 500mA at 24Vdc
• Material: Stainless steel faceplate
• Weight: 0.44 kg
• Certifications: UKCA, CE, RoHS
• Warranty: 5 years

Dimensions

• Body: 163 mm x 25 mm x 45 mm
• Faceplate: 212 mm x 47 mm x 3 mm
• Fixing centres: 185 mm
