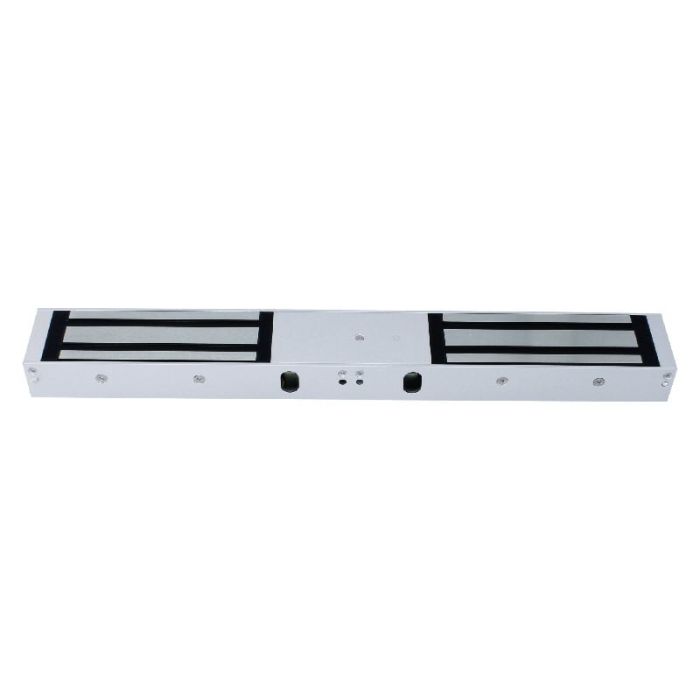

CDVI Entry Level Double Surface Mounted Magnetic Lock 500kg, Monitored

CDVI C5S12 Entry Level Double Surface Mounted Magnetic Lock 500kg, Monitored

The C-Line range of electromagnetic locks have been designed to provide a high performance and cost-effective solution to the competitive edge of the magnetic locking market.

The range includes mortice and surface magnets, single and double, with 300kg (C3S11, C3S12) or 500kg (C5S11, C5S12) holding force.

Each package includes security catch ropes to prevent the magnetic lock from falling, ensuring the locks can be mounted safely without risk of injury.

For compatible L & ZL brackets see Related products on the right.

Features:

• Surface mount
• 500Kg holding force
• High quality performance
• No moving parts
• Designed with safety features

Technical Specifications:

• Operating Voltage:12V to 24Vdc
• Current: @12Vdc = 610mA, @24Vdc = 305mA

Dimensions:

• 542 x 65 x 40mm
