CDVi ARU-M ANSI Monitored Electric Strike, 12Vdc, 750kg
£68.95
£57.46
SKU
ARU-M
- This product is available to order. The lead time is normally 2 – 4 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product

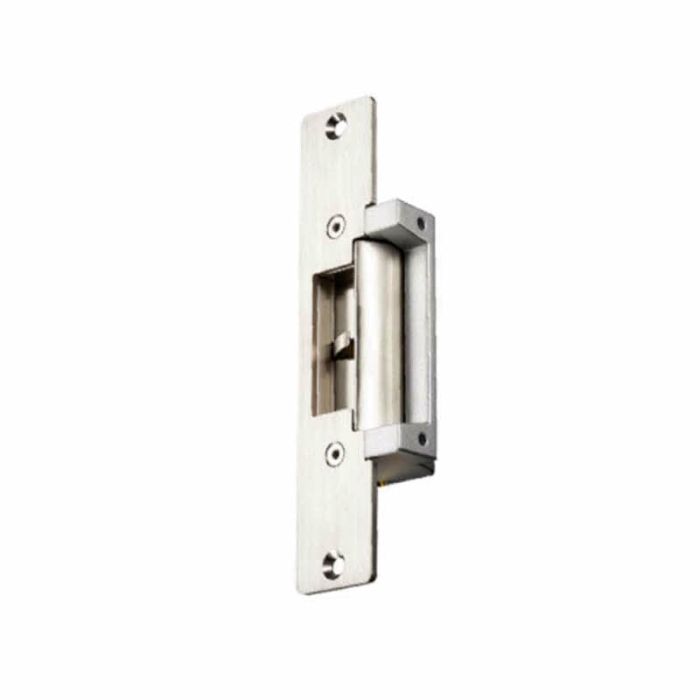

CDVi ARU-M ANSI monitored electric strike with switchable fail safe/fail secure operation, 750kg holding force, stainless steel jaw, 12Vdc. Built-in MOV protection.
CDVi ARU-M ANSI Monitored Electric Strike 12Vdc 750kg
The CDVi ARU-M is a monitored ANSI electric strike offering switchable fail secure and fail safe operation in a single unit. With a 750kg holding force and stainless steel jaw, it is suited for securing residential and industrial sites on wooden or metal doors. The built-in MOV (metal oxide varistor) protects connected electronic control devices from damaging electric spikes.
Supplied with both long and short faceplates and a full fixing kit for metal doors, the ARU-M is a versatile strike that accepts 25mm and 50mm extension lips for additional flexibility.
Key Features
- Switchable fail secure and fail safe operation
- 750kg holding force
- Stainless steel jaw for added strength
- Monitored lock status
- Long and short faceplates supplied
- Accepts 25mm and 50mm extension lips
- Full fixing kit for metal doors included
- Built-in MOV for spike protection
- Tested to 200,000 operations
- Left and right handed installation
Technical Specifications
- Voltage: 12Vdc
- Current draw: 250mA @ 12Vdc
- Holding force: 750kg
- Lock mode: Fail secure and fail safe (switchable)
- Monitoring: Yes
- Material: Stainless steel jaw
- Door type: Wooden or metal doors
- Cycles tested: 200,000 operations
- Operating temperature: -15C to 40C
- Certifications: CE, RoHS
- Warranty: 5 years
Dimensions
- Strike body: 165 mm x 32 mm x 32 mm (faceplate depth 2 mm)
- Short faceplate: 124 mm x 32 mm x 2 mm
- Long faceplate: 165 mm x 32 mm x 2 mm
| Brand | CDVi |
|---|---|
| Strike Operation | Fail Locked (Fail secure) |
| Voltage | 12.0 Volt DC |
| Handing | Reversible (Right or Left hand) |
| Type of Device | Electric lock |
| Finish | Stainless steel |
