CDVi 1M Architectural Housing for Single Door, 1 x 300kg Maglock
£258.92
£215.77
SKU
AH3-1HM
- This product is available to order. The lead time is normally 3 – 5 working days.
- An accurate despatch date will be confirmed with you once order is received by our sales team (during office hours).
Free Delivery on this product
CDVi AH3-1HM 1M transom housing with one 300kg electromagnetic lock (V3E35R) for horizontal installation on single doors.

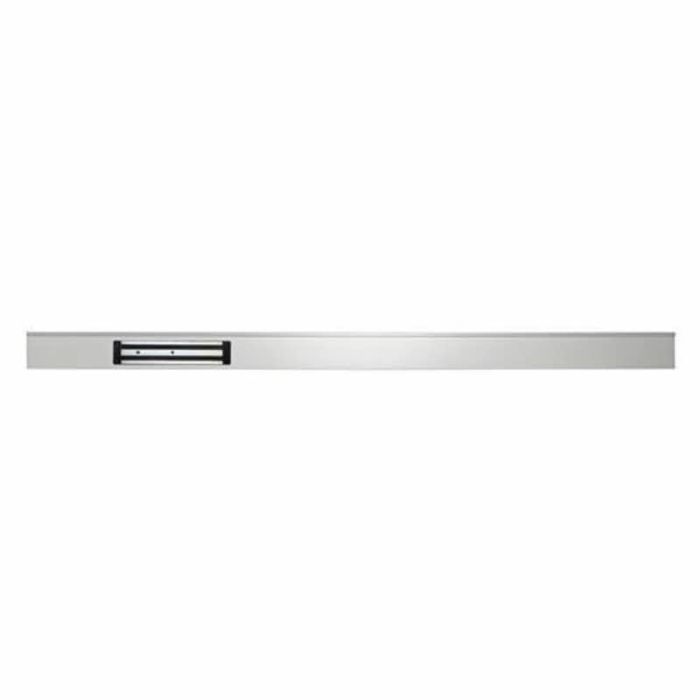

CDVi AH3-1HM 1M Architectural Housing with 300kg Maglock
The CDVi AH3-1HM is a 1-metre satin anodised aluminium transom housing supplied with one 300kg electromagnetic lock (V3E35R). Designed for horizontal installation on single inward-opening doors, this housing fits into the door frame header to provide a neat, architectural finish to maglock installations. Z brackets are required to install the armature on the door leaf. The AH3 series is exclusively compatible with the V3E35R maglock. RAL colours are available on request.
Key Features
- Surface mount architectural housing kit for single doors
- Includes 1 x 300kg transom maglock (V3E35R)
- Horizontal installation on door frame header
- Satin anodised aluminium construction
- Fail safe lock mode
- Monitored with 1 relay
- 100kg pre-load certified (FR regulation NFS 61-937)
- Custom RAL colours available on request
- 10 year warranty
Technical Specifications
- Holding Force: 300kg
- Voltage: 12-24Vdc
- Current Draw: 480mA at 12Vdc / 240mA at 24Vdc
- Lock Mode: Fail safe
- Relays: 1
- Material: Satin anodised aluminium
- Mounting: Surface, horizontal transom mount
- Protection Class: IP54 (maglock)
- Impact Rating: IK10 (maglock)
- Pre-load: 100kg (NFS 61-937)
- Operating Temperature: -25C to +70C
- Weight: 2 kg
- Certifications: CE, RoHS, DEEE
Dimensions
- Housing: 990 x 50.8 x 38.1 mm
- Maglock: 228 x 35.5 x 24.5 mm
- Armature Plate: 185 x 38 x 11 mm
| Brand | CDVi |
|---|---|
| Type of Device | Miscellaneous Accessories |
| Fits into (onto) | Aluminium frame |
| Accessories | Handles |
