CDVI A22POE | Ultra Access Controller For 2 doors and 2 Readers (POE)

CDVI A22POE | Ultra Access Controller For 2 doors & 2 Readers (POE)

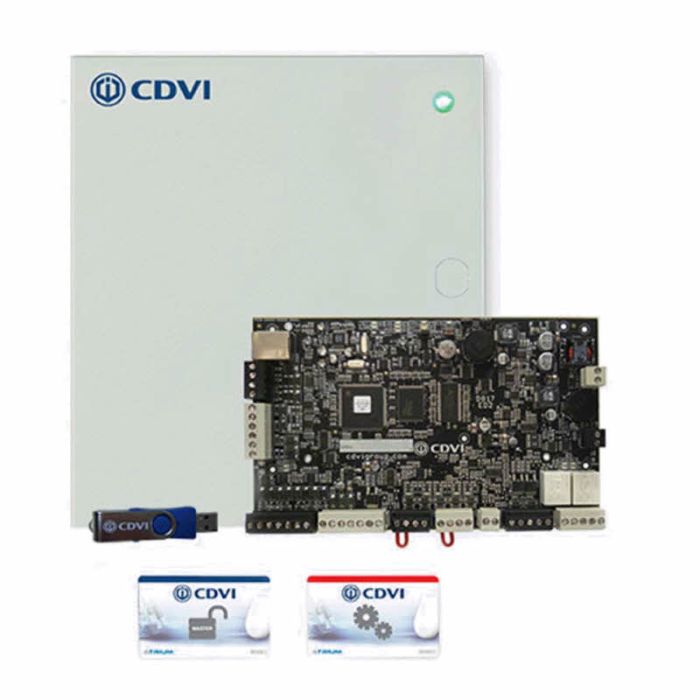

The A22POE is a 2-door and 2-reader expander part of the ATRIUM product range. The A22POE can power 2 magnetic locks over PoE and the system capicity is up to 500 doors and 10,000 users.

It also features an auto-detect function for easy installation and use. The A22POE is delivered and built in a metal case with tamper for increased security while providing ample room to make connections.

Features:

• Controls 2 doors and 2 readers (1 Door Read In/Out OR 2 Doors Read In Only)
• Built in PoE + 66 Watt Splitter
• Auto-detect hardware modules
• Quick and easy card enrolment procedure
• Completely fuseless system
• Up to 500 doors
• Up to 10,000 users
• Up to 10,000 cards
• Up to 25,000 Event Buffer
• FREE Management Software
• Maintenance-friendly snap on terminal connectors

Technical Specifications:

• 26, 30 & 44 Bit Wiegand format
• Track 2 ABA
• Reader & Keypad (Card & PIN)
• All CDVI Readers
• 3rd Party if compatible
• 128 bit Universal Input

• On-board Ethernet - A22POE to A22POE (max 10)
• RS-485 Bus - A22POE (max 4 per A22POE)
• Auto-detect hardware modules (No DIP Switches)

• Auxiliary outputs: 1A (12v DC) Fuseless protection

• Reader Inputs/Ports: 2
• Multi-purpose inputs: 6 (12 using zone doubling)

• Lock outputs: 2 (750mA @ 12v DC)
• + Combined
• Relay Outputs: 2 Form C relays (Dry Contact) 5A @ 250v AC, 7A @ 125v AC, 7A @ 30v DC

• Power input: 85v AC to 264v AC, 50/60Hz
• Supply Current: 3.3A switching power supply
• Battery backup: One 12v DC, 4.5Ah or 7Ah, gel type battery

• -22C to 50C (-4F to 122F)

Dimensions:

• Cabinet: 290 x 280 x 80 (hwd mm)
• PCB: 210 x 130 x 30 (hwd mm)
