CAME R800 Keypad Interface Board for RBM84/REM
£25.92
£21.60
In stock
SKU
R800
- Free Delivery on orders over £50
- Applies to orders for IN STOCK items totalling £50 ex. VAT

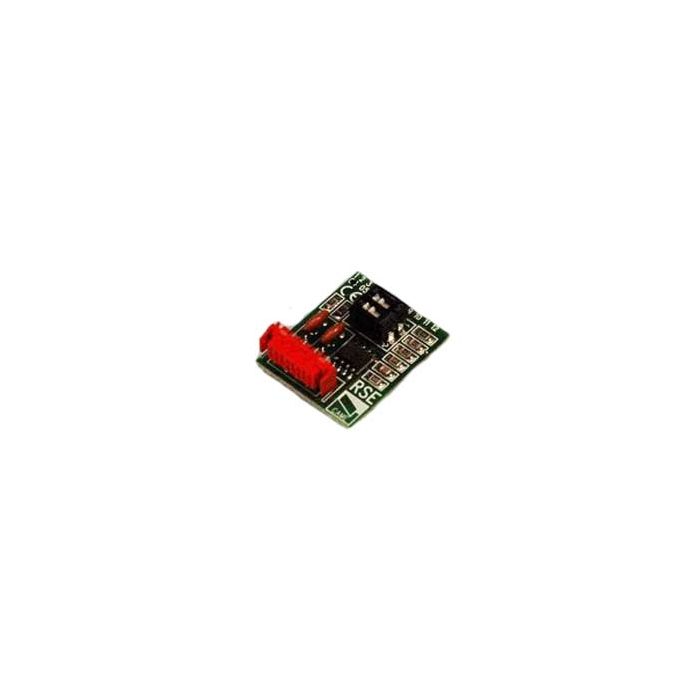

CAME R800 plug-in interface board connecting S5000, S6000 and S7000 coded keypads to RBM84 and REM access control modules via A-B bus wiring.
CAME R800 Keypad Interface Board for Access Control Systems
The CAME R800 is a plug-in interface board that connects CAME coded keypad selectors (S5000, S6000 and S7000) to the RBM84 main control board and REM expansion modules. It plugs directly into the sensor card slot, enabling keypad-based code entry for access control at gates, barriers and controlled entry points. The board must be inserted with the power supply disconnected.
Key Features
- Plug-in interface board for RBM84 and REM modules
- Connects S5000, S6000 and S7000 coded keypads
- A-B bus wiring connection to keypads
- Maximum cable distance from keypad to controller: 50 m
- Also compatible with ZP11 automatic door control boards for keypad sensor input
Technical Specifications
- Connection type: Plug-in card slot on RBM84/REM
- Compatible keypads: S5000, S6000, S7000
- Keypad wiring: A-B bus terminals
- Maximum keypad cable run: 50 m
- Compatible control boards: RBM84, REM, ZP11
| Brand | CAME |
|---|
