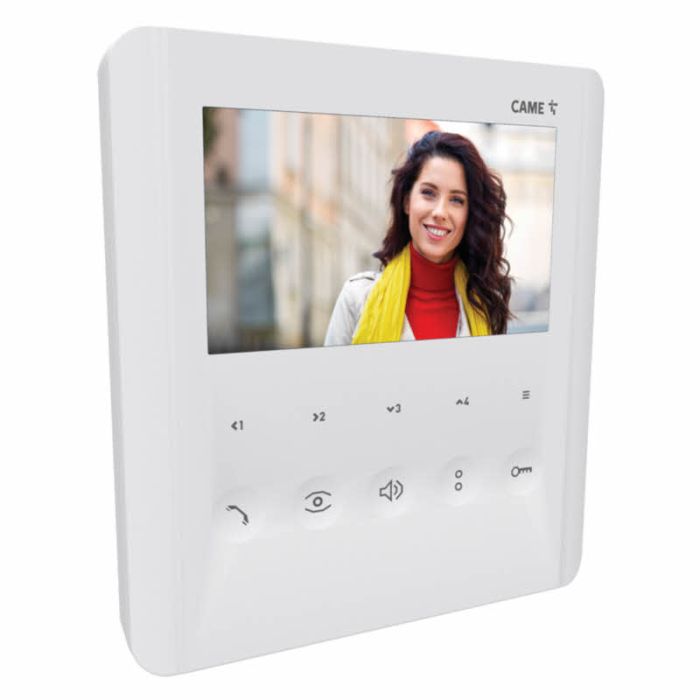

CAME BPT Handsfree Video Monitor with 5 Inch LCD Display for X1 System

CAME BPT PLX V White Handsfree Video Monitor with 5 Inch LCD Display and Soft Touch Keys for X1 System

The PLX V is a handsfree video intercom with soft-touch buttons, five inch LCD display and four buttons for intercom calls or auxiliary commands in a white finish.

It is equipped with button for ringtone adjustment/exclusion and is a wall monitor with 5 inch colour LCD display equipped with OSD for adjusting video parameters (brightness, colour, contrast).

The five main touch buttons are used to manage the primary functions such as answering and hanging up communication, door opening, self-insertion of entry panel videos, ringtone adjustment/exclusion (with signaling LED when excluded) and the sending of a programmable auxiliary command.

It is suitable for multi-user systems as it allows up to 6 intercom calls and the sending of the 'Panic' signal for the porter to call for help. If configured it enables up to 4 additional auxiliary commands, alternative to intercom calls. It allows manging the "gate opener" function and displays the status of the gate controlled by means of a signaling LED.

It includes a bracket for wall mounting on horizontal or vertical 503 box and on ¯ 60 mm round box. Compatible with the X1 and XIP systems.

Features:

• 5 inch colour display with OSD
• High-quality handsfree audio
• Concealed LED signal
• Soft-touch buttons
• Self-inserting video from entry panels
• Master/Slave function and video relaying between extensions function for simultaneous calls
• It includes a bracket for wall mounting on horizontal or vertical 503 box, on 506E box and ¯ 60 mm round box
• Desktop mount available with AGT KT V (sold separately)

Technical Specifications:

• Colour: White
• Video standard: PAL/NTSC
• Protection rating (IP): 30
• Operating temperature (C): +5 to +40
• Consumption in stand-by mode (mA): <1
• Absorption by BUS (mA): 200
• Power supply by BUS (V): 15 Ö 20 DC

Dimensions:

• 170 x 155 x 25 (hwd mm)
