Bticino Audio/Video Camera Module for Sfera and Robur Systems (2 Wire)

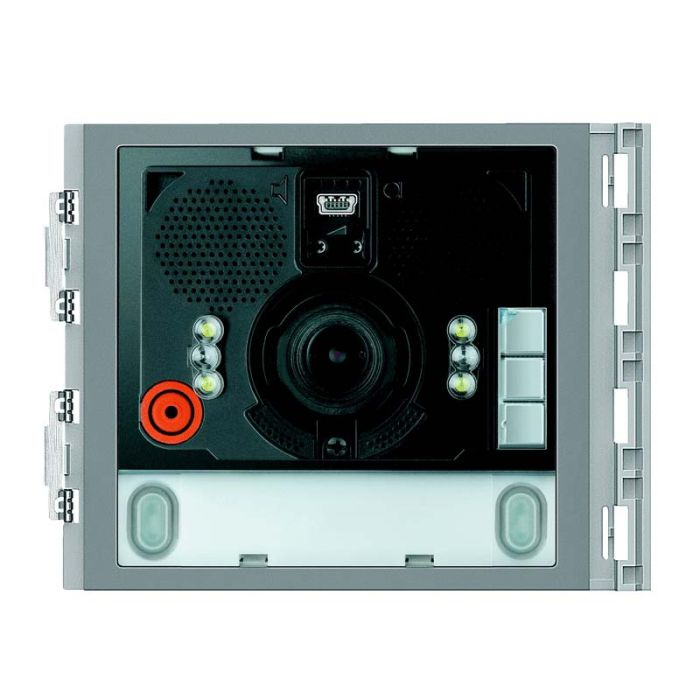

Bticino 351200 Video Module 2 Wire Sfera and Sfera Robur Systems

This audio video module was designed to be used with the Sfera New and Sfera Robur range of modular entrance panels and front covers, which use the two wire cabling system.

It features a colour camera with an 1/3 inch integrated optic sensor for night time support as well as an adjustable lens which can be angled by the installer.

The module is also equipped with visual notifications which inform the visitor of the call status. The device must be configured physically or via a computer using the TiSferaDesign software.

The connections used to link multiple modules in the system are made using the multi-cable supplied.

It also includes a port to connect the induction loop module (352700), Once the last module is installed, simply place the supplied closing card in place and complete with surround plate.

Features:

• LED status indicators
• Adjustable microphone and loudspeaker volume
• Connector for induction loop module

Technical Specifications:

• Power supply from SCS BUS: 18 - 27 V DC
• Stand by absorption (with backlighting LEDs off): 15 mA
• Stand by absorption (with backlighting LEDs on): 20 mA
• Maximum operating absorption: 140 mA
• Operating temperature: -25 to +70 degrees C
• Protection index (pushbutton panel assembled): IP 54

Dimensions:

• 91 x 115 (hw mm)
