Bticino Additional Power Supply for Entrance Panels and Intneral Units

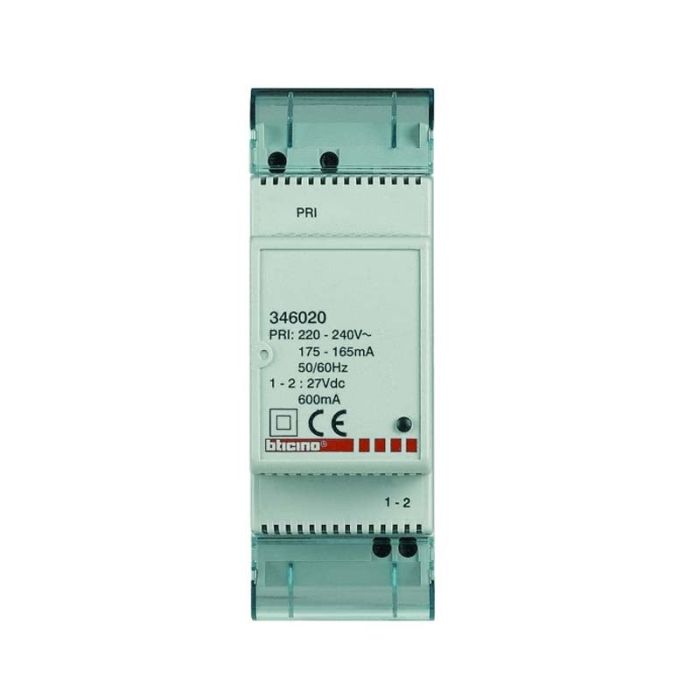

Bticino 346020 Additional Power Supply for Entrance Panels and Intneral Units

This power supply is double insulated for additional protection in accordance to the certified electrical inspector (CEI). The device is used to supply power to video door entry systems and entrance panels as well as some accessories from the MyHome range. It is enclosed by a two DIN module plastic rail enclosure and the device must not be configured.

Designed for Video Door Entry & MyHome Accessories

Purpose-built to integrate with Bticino's video door entry systems and MyHome accessories, the 346020 is essential when your system requires extra power beyond the main supply's capacity. Whether youÕre powering additional entrance panels or internal video units, this device delivers stable and regulated energy output for dependable performance.

Compact 2-DIN Form Factor

Measuring just two DIN modules in width, the power supply is ideal for installations where panel space is limited. Its compact size allows for easy inclusion in existing distribution boards or enclosures without requiring major adjustments.

Built-In Electrical Safety Features

Engineered for durability and safety, the power supply features double insulation in line with CEI (Certified Electrical Inspector) standards, protecting users and equipment from electrical faults. It also includes a PRI-side integrated fuse (T2A 250V) to safeguard the unit against power surges and overload conditions.

Features:

• Two DIN module device
• Status notification LEDs
• 230 V AC input connection clamps

Technical Specifications:

• PRI AC power supply input
• Rated voltage: 220 - 240 V AC
• Rated current: 180 - 190 mA
• Working voltage range: 187 - 265 V
• Working frequency range: 47 - 63 Hz
• Input power at full load: 20 W maximum
• Dissipated power: 3.8 W maximum
• Performance at full load: 80%
• Power in stand by: < 1 W
• Operating temperature: 5 to +40 degrees C
• Integrated fuse (PRI side): F1 T2A 250V


• 1-2 DC Output
• Rated voltage: 27 V +/- 100 mV
• Rated current: 0 - 0.6 A
• Rated power: 16.2 W
