Bticino Classe 100B Handsfree Video Monitor 2-Wire

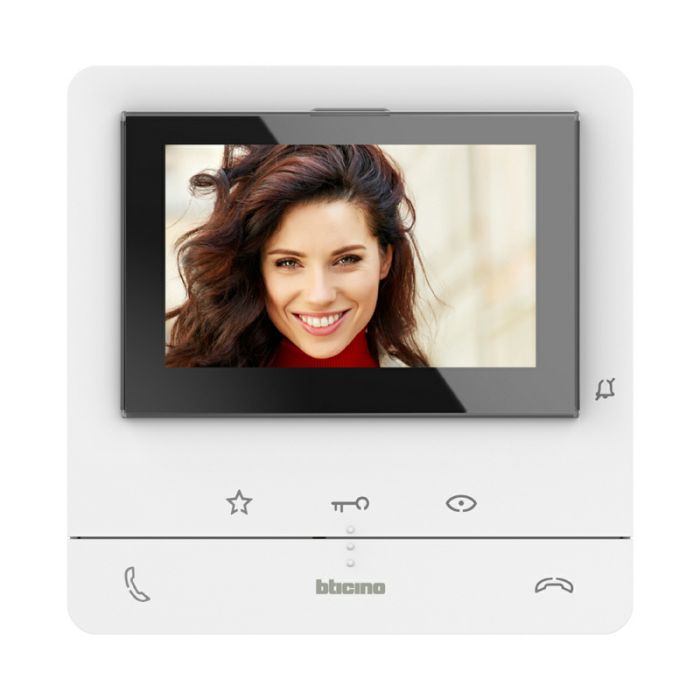

Bticino Classe 100B Basic Handsfree Video Monitor 2-Wire 344652

The Bticino Classe 100B from Legrand is the most cost effective member of the new Classe100 handsfree range. It represents excellent value for money with its style mimicking the more advanced options in the range.

It provides all the basic functions of the Classe 100 range and comes with 2 physical keys for the control of the main video door entry functions e.g. answering and ending a call, and 3 capacitive keys that allows the door lock release and entrance panel scrolling.

Modern Design, Minimal Footprint

Housed in a sleek, ultra-thin matt white casing, the Classe 100B offers a clean and contemporary aesthetic suitable for any interior. Its compact 5" full-screen display ensures clear visibility of visitors, while maintaining a minimalist footprint perfect for wall-mounted or desk-mounted applications.

Intuitive Controls

Functionality is simplified with two physical buttons dedicated to the core tasks of answering and ending calls. In addition, three touch-sensitive capacitive keys provide effortless control over the door lock, auxiliary relay activation and entrance panel scrolling.

Flexible, Scalable System Integration

The Classe 100B operates on a 2-wire cabling system, making it ideal for both new installations and the refurbishment of legacy door entry systems. When wired in series, it can support up to 22 apartments without requiring an additional power supply - simplifying installation and reducing system complexity.

If you need a reliable, stylish, and easy-to-use video door monitor that won't stretch your budget, the Bticino Classe 100B is a top contender. Whether you're modernizing a building or specifying a new project, this model delivers core functionality, elegant design, and excellent value.

Features:

• The 5 full screen, compact display ensures great visibility Inductive loop
• Screen brightness and call tone volume adjustment
• The thin, minimal, modern design is combined with a stylish matt white finish
• New tilting control to answer and end the call, together with a range of touch controls for other functions
• Connect to 22 apartments without dedicated power supply when wired in series
• Ideal for the refurbishment of old door entry systems
• No extra work for the installer; easier to use for the end user

Technical Specifications:

• 2 wired cabling
• Series EN: CLASSE 100
• The device is equipped with the professional studio (office) function which must be configured
• Power supply 18 - 27 Vdc
• Stand by absorption 10 mA
• Max. absorption 250 mA max
• Maximum cable section for each clamp 2 x 1 mm sq
• Operating temperature 5 - 40
• 2 physical keys for the control of the main video door entry functions: answer and end a call
• 3 touch keys for the control of the main functions: door lock release, auxiliary relay control and entrance panel activation /scrolling
• Can be wall mounted using bracket (supplied) or table mounted using table support accessory (2 x 344692)
• Side lever to adjust: colour, brightness and display contrast, audio volume, ringtone volume
• LED indicators for signalling of call exclusion

Dimensions:

• 165 x 164 x 20.5 (mm hwd)
